Webb Wheel Hub Detail

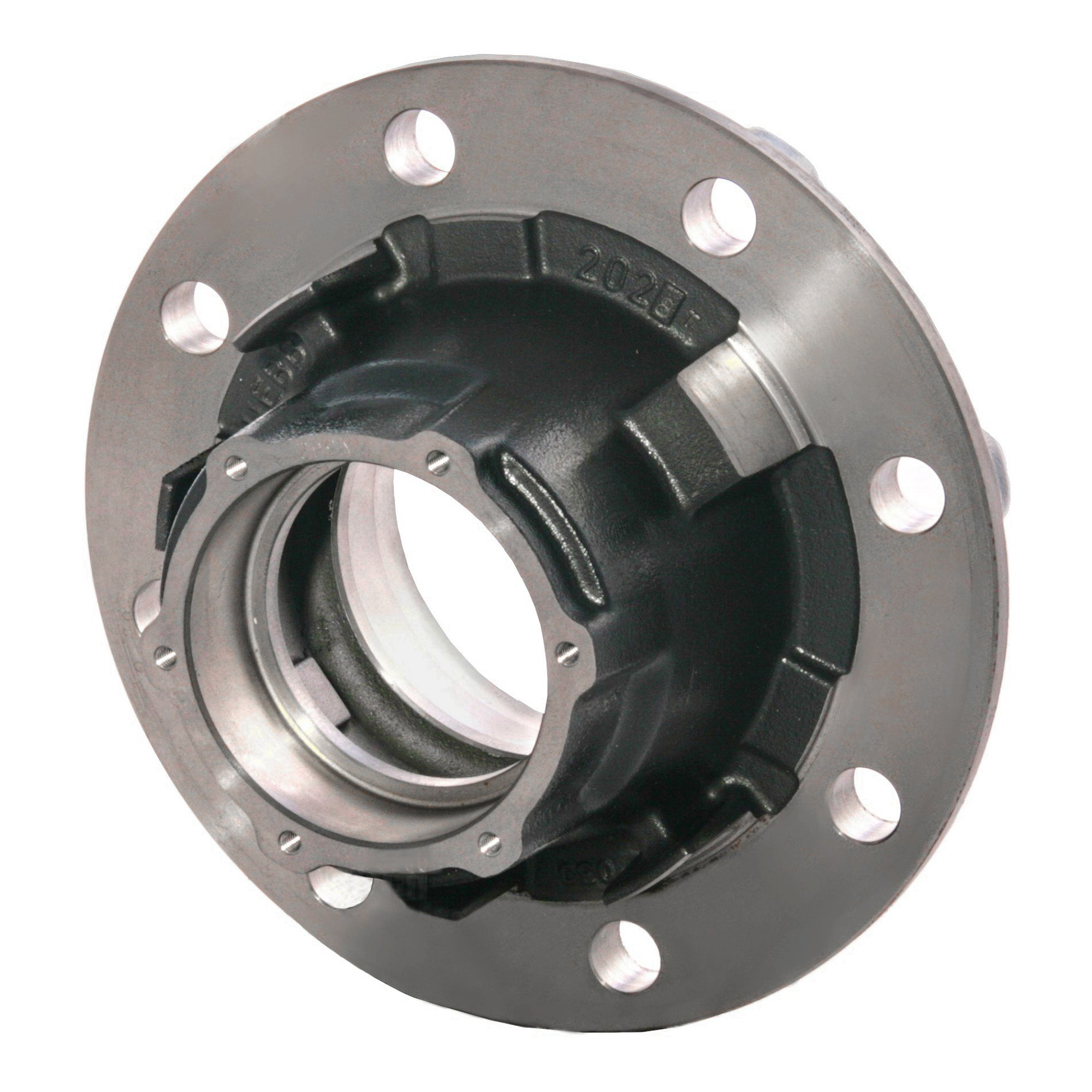

20281--0T photo

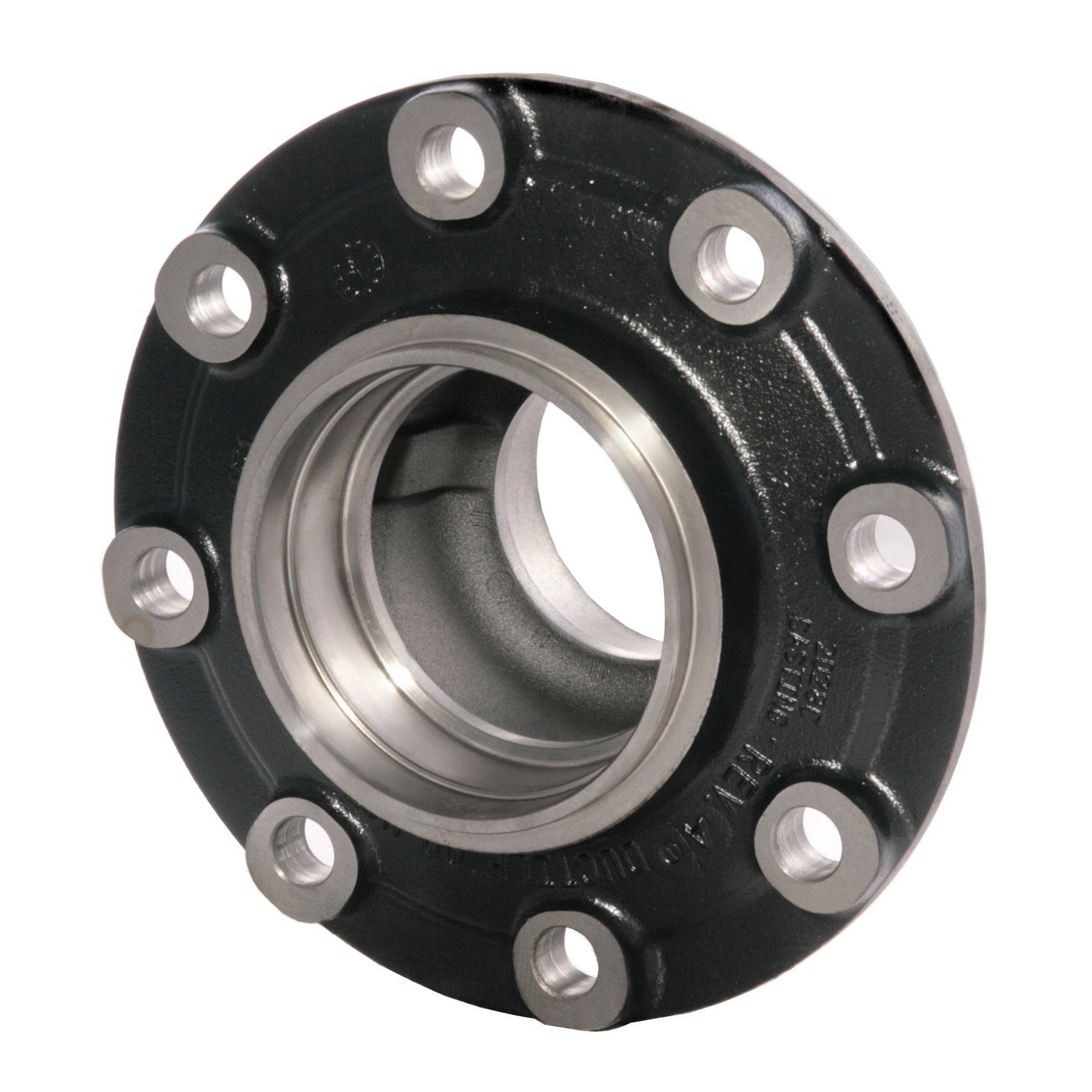

20281--0T photo

HUB INFORMATION
Part Number: 20281--0T
Hub Number: 2028
Description: 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud
Hub Material: Cast
Mounting Type: FN
Drum Type: Outboard
Disc Wheel: N/A
Wheel Stud: N/A
Stud Stand Out: N/A
ABS Ring: Direct Machined ABS
Drum Options: 61576F, 61989F, 61999F, 66875F, 66816F
Drum Type: Outboard
Number of Studs: 8
Bolt Circle: 10.827
Stud Description:
Outer Bearing Cup: HM212011
Outer Bearing Cone: HM212049
Inner Bearing Cup: HM218210
Inner Bearing Cone: HM218248
Webb Axle Group: 2
Cup Code: 1
Notes:
This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. All drums listed for use with 8-hole, 275MM B.C. USA Mounting Systems.
Grease Hubcap Kit: 73655

lineart

AXLE MANUFACTURER



AXLE MANUFACTURER
ArvinMeritor (Rockwell)
RN, RQ, TKN, TN, TQ, TQC, TQD

Dana Spicer (Eaton)
D-22, K-22, J, JE, JH, 23L, 23R

Dexter
D200K, D225K

Hendrickson
HN

Ingersoll
A22H, A22S, A22T, DC22H, F22

K-B
KBW-KBS

Standard Forge
A22H, A-22S, A22T

Westport
F3W-1600, F3W-1800/2000, F3W- 1800D/2000D, F6W-1600

DRUM OPTIONS
Click on Drum Part Numbers for More Drum Information
Drum/Rotor NumberBrake SizeNotes
61576B7.000.50 Back Plate Thickness
61576F7.000.50 Back Plate Thickness
61989B8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
61989F8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
61999B8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
61999F8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
66816F8.62
66875B7.000.50 Back Plate Thickness
66875F7.000.50 Back Plate Thickness

FLANGE MOUNT (FN) INFORMATION
