Webb Wheel Hub Detail

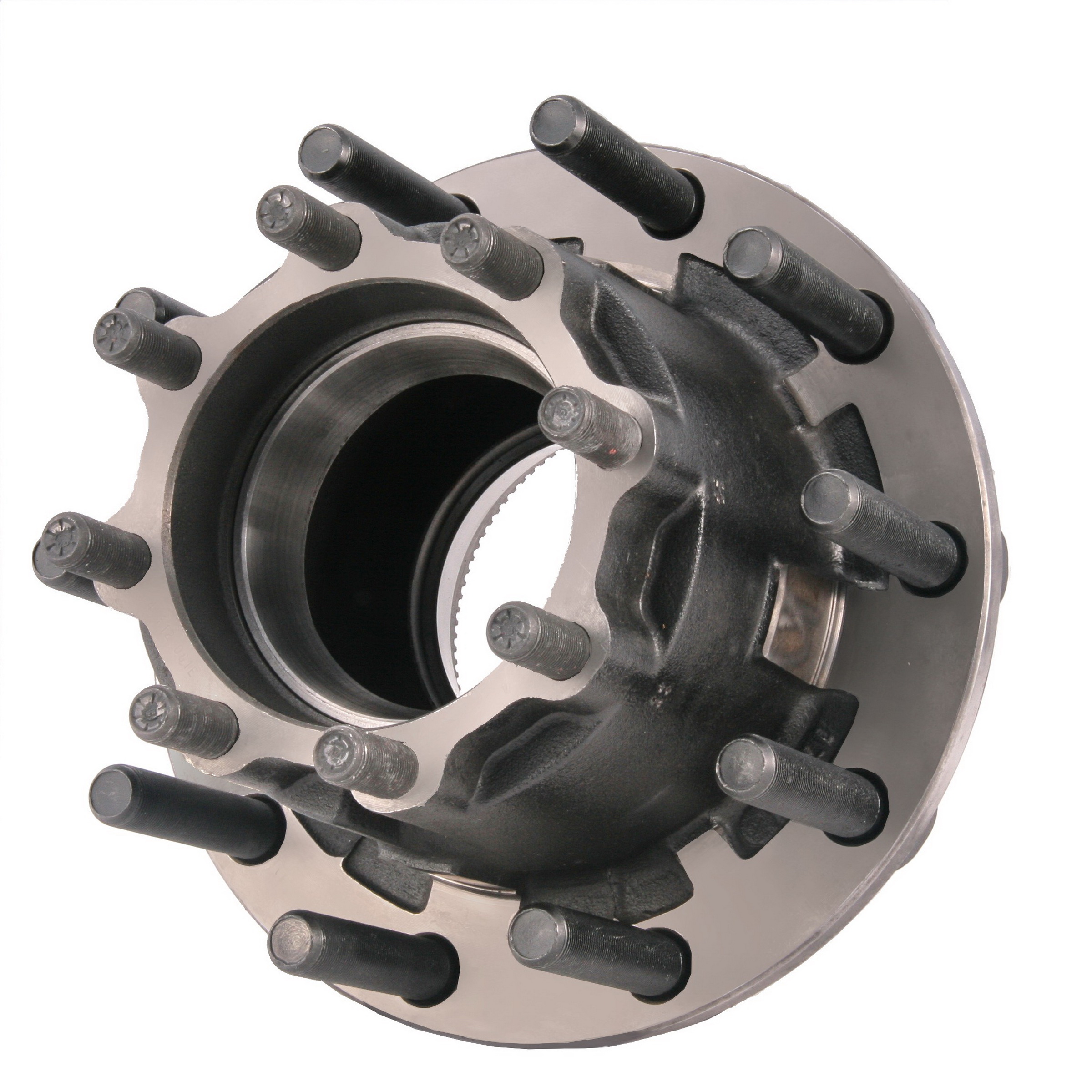

26531--5T photo

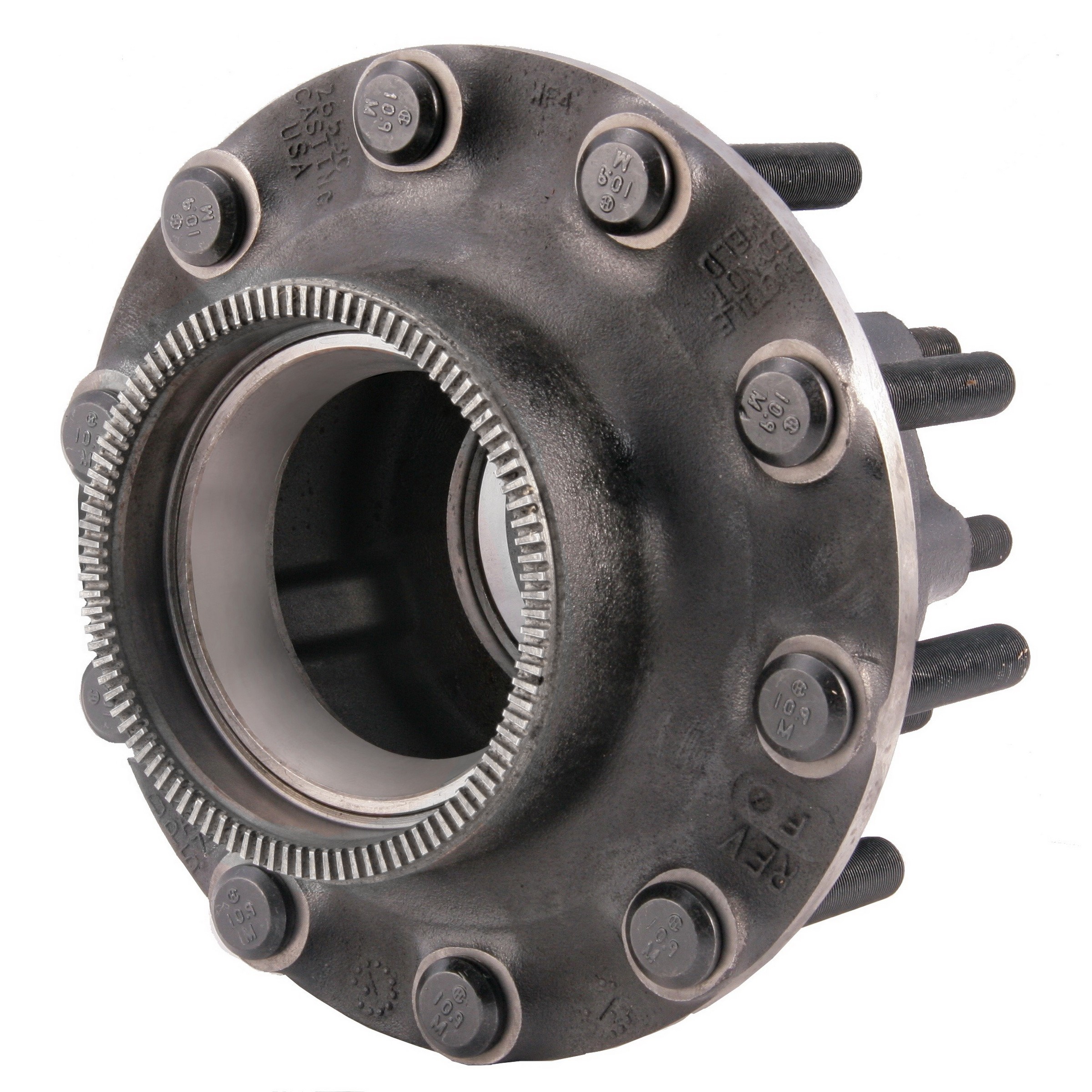

26531--5T photo

HUB INFORMATION
Part Number: 26531--5T
Hub Number: 2653
Description: Short Barrel Hub; 10 Stud Hub w/11.25 (285.75 MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud
Hub Material: Cast
Mounting Type: FN
Drum Type: Outboard
Disc Wheel: Aluminum (Dual)
Wheel Stud: 101160
Stud Stand Out: 3.94
ABS Ring: Direct Machined ABS
Drum Options: 61577B, 61988B, 61991B, 66661B, 66864B, 66884B, 66800B, 66814B, 66854B, 66871B, 77864B
Drum Type: Outboard
Number of Studs: 10
Bolt Circle: 11.25
Stud Description: M22 x 1.5MM Serrated Stud
Outer Bearing Cup: 572
Outer Bearing Cone: 580
Inner Bearing Cup: 592A
Inner Bearing Cone: 598A or 594A
Webb Axle Group: 23
Cup Code: 1
Notes: Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness. Add (.25) to these dimensions when using brake drums having (.25) backface
This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. Stud standout (cast drums).
Short Drive, Drive Stud P/N:175032 (3/4"-10) x 8. 7.00" Bolt Circle

lineart

AXLE MANUFACTURER



AXLE MANUFACTURER
ArvinMeritor (Rockwell)
(Short Drive "R" Series) RC-22-145, RS-21-145, RS-21-160, RS-21-230, RS-23-160, RS-23-161, RS-23-180, RS-23-240, RS-23-380, RS-24-160, RS-24-161, RS-26-160, RS-26-161, RS-26-180, RS-26-380, RT-40-145, RT-44-145, RT-46-160, RT-48-180, RT-48-380, RT-52-160, RT-52-180, RT-52-380

Dana Spicer (Eaton)
(Short Drive) J-220, J-230, J-380, J-400, M-220, M-230, N-400, W-230, W-460

Navistar
(Short Drive) RA35, RA47, RA57

DRUM OPTIONS
Click on Drum Part Numbers for More Drum Information
Drum/Rotor NumberBrake SizeNotes
61577B7.000.50 Back Plate Thickness
61988B8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
61991B8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
66661B7.000.50 Back Plate Thickness/Extra Heavy Duty Drum
66665B7.000.50 Back Plate Thickness
66800B8.000.56 Back Plate Thickness
66854B8.620.56 Back Plate Thickness Oil Groove
66864B7.000.50 Back Plate Thickness/Heavy Duty Drum
77864BW7.000.50 Back Plate Thickness/Heavy Duty Drum
66871B10.000.50 Back Plate Thickness
66884B7.000.50 Back Plate Thickness/Extra Heavy Duty Drum

FLANGE MOUNT (FN) INFORMATION
Disc Wheel: Aluminum
Tire Application: Dual
Total Disc Wheel Thickness: 1.68 to 2.00
Drum Type: Cast
Right Hand Stud: 101160
Stud Color: Black
Stud Standout: 3.94
Order Code: 5


Disc Wheel: 1-Steel/1-Alum.
Tire Application: Dual
Total Disc Wheel Thickness: 1.22 to 1.50
Drum Type: Cast
Right Hand Stud: 101160
Stud Color: Black
Stud Standout: 3.94
Order Code: 5
