Webb Wheel Hub Detail

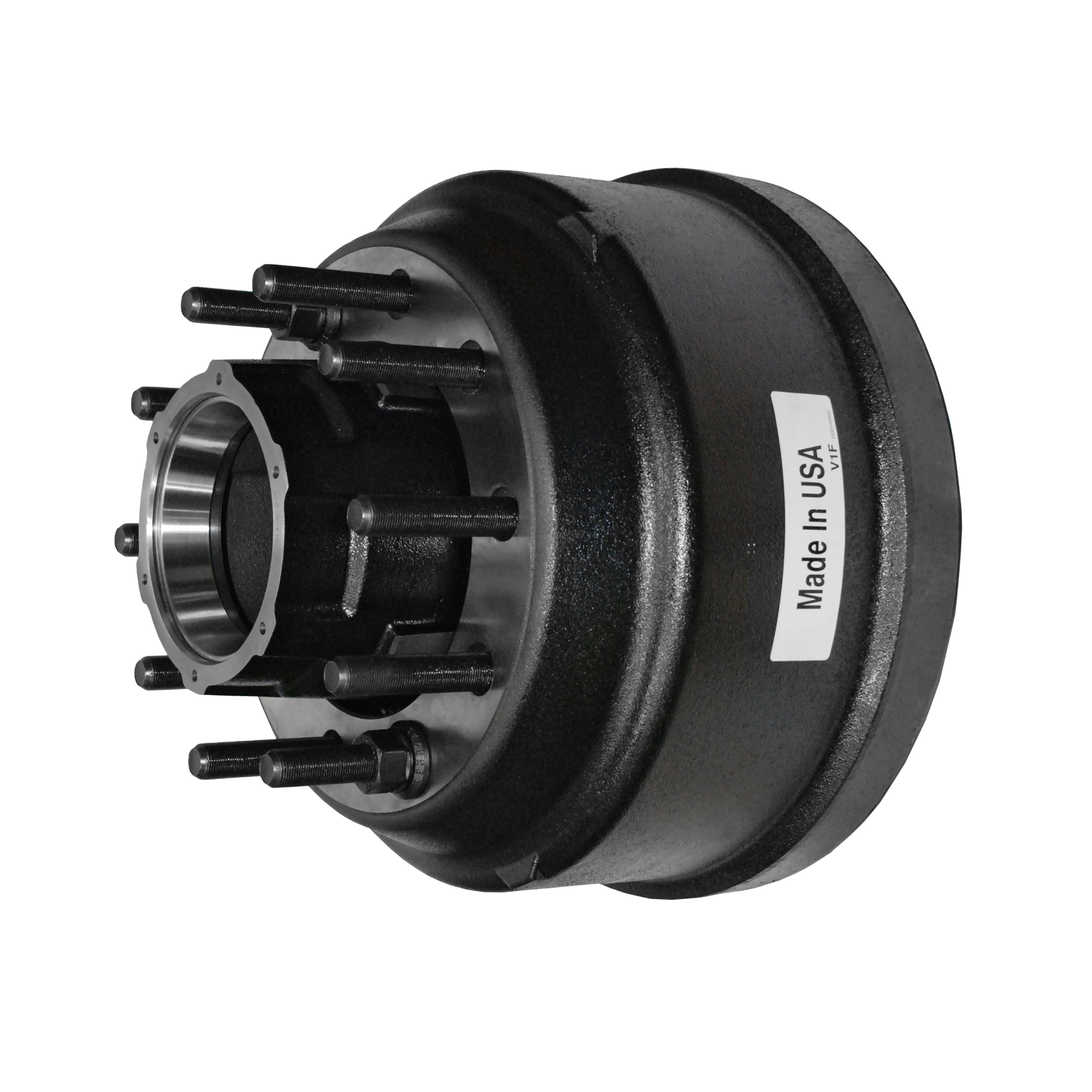

23431--5T photo

HUB INFORMATION
Part Number: 23431--5T
Hub Number: 2343
Description: 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Bolt-on Hubcap. Uses Outboard Drum - (M22 x 1.5) Serrated Stud
Hub Material: Cast
Mounting Type: FN
Drum Type: Outboard
Disc Wheel: Aluminum (Dual)
Wheel Stud: 101160
Stud Stand Out: 4.16
ABS Ring: Direct Machined ABS
Drum Options: 61577F, 68985F, 66800F, 66864F, 66884F, 66814F, 66854F, 66871B
Drum Type: Outboard
Number of Studs: 10
Bolt Circle: 11.25
Stud Description: M22 x 1.5MM Serrated Stud
Outer Bearing Cup: HM518410
Outer Bearing Cone: HM518445
Inner Bearing Cup: HM518410
Inner Bearing Cone: HM518445
Webb Axle Group: 4
Cup Code: 1
Notes: This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. A longer stud standout is not necessary when using Grade 8 inner cap nuts with aluminum disc wheels.



lineart

AXLE MANUFACTURER



AXLE MANUFACTURER
ArvinMeritor (Rockwell)
TP

Dana Spicer (Eaton)
P-22, 225P, 230P

Fruehauf
PRO-PAR

Hendrickson
HP

Ingersoll
A24H, A24S, F24

DRUM OPTIONS
Click on Drum Part Numbers for More Drum Information
Drum/Rotor NumberBrake SizeNotes
61577B7.000.50 Back Plate Thickness
61577F7.000.50 Back Plate Thickness
61988B8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
61988F8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
61991B8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
61991F8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
66800B8.000.56 Back Plate Thickness
66800F8.000.56 Back Plate Thickness
66814B8.627 inch centerline
66814F8.627 inch centerline
66854B8.620.56 Back Plate Thickness Oil Groove
66854F8.620.56 Back Plate Thickness Oil Groove
66864B7.000.50 Back Plate Thickness/Heavy Duty Drum
77864BW7.000.50 Back Plate Thickness/Heavy Duty Drum
66864F7.000.50 Back Plate Thickness/Heavy Duty Drum
66871B10.000.50 Back Plate Thickness
66871B10.000.50 Back Plate Thickness
66884B7.000.50 Back Plate Thickness/Extra Heavy Duty Drum
66884F7.000.50 Back Plate Thickness/Extra Heavy Duty Drum

FLANGE MOUNT (FN) INFORMATION
Disc Wheel: Aluminum
Tire Application: Dual
Total Disc Wheel Thickness: 1.68 to 2.00
Drum Type: Cast
Right Hand Stud: 101160
Stud Color: Black
Stud Standout: 3.94
Order Code: 5


Disc Wheel: 1-Steel/1-Alum.
Tire Application: Dual
Total Disc Wheel Thickness: 1.22 to 1.50
Drum Type: Cast
Right Hand Stud: 101160
Stud Color: Black
Stud Standout: 3.94
Order Code: 5
