Webb Wheel Hub Detail

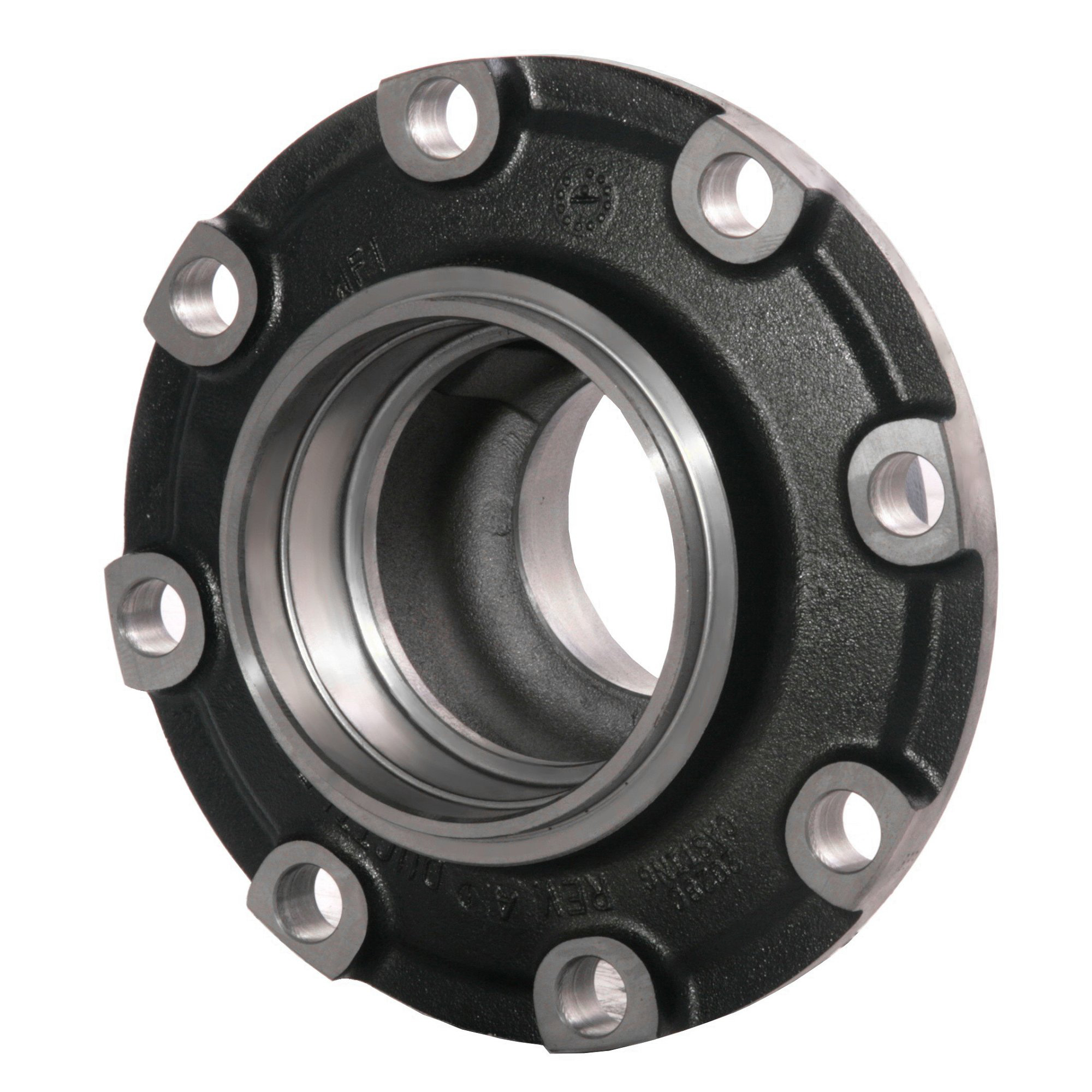

20271--0 photo

HUB INFORMATION
Part Number: 20271--0
Hub Number: 2027
Description: 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud
Hub Material: Cast
Mounting Type: FN
Drum Type: Outboard
Disc Wheel: N/A
Wheel Stud: N/A
Stud Stand Out:
ABS Ring: N/A
Drum Options: 63680F
Drum Type: Outboard
Number of Studs: 8
Bolt Circle: 10.827
Stud Description: M22 x 1.5MM Serrated Stud
Outer Bearing Cup: HM212011
Outer Bearing Cone: HM212049
Inner Bearing Cup: HM218210
Inner Bearing Cone: HM218248
Webb Axle Group: 2
Cup Code: 1
Notes: Use 20271--0-71



lineart

AXLE MANUFACTURER



AXLE MANUFACTURER
ArvinMeritor (Rockwell)
RN, RQ, TKN, TN, TQ, TQC, TQD

Dana Spicer (Eaton)
D-22, K-22, J, JE, JH, 23L, 23R

Dexter
D200K, D225K

Hendrickson
HN

Ingersoll
A22H, A22S, A22T, DC22H, F22

K-B
KBW-KBS

Standard Forge
A22H, A-22S, A22T

Westport
F3W-1600, F3W-1800/2000, F3W- 1800D/2000D, F6W-1600

DRUM OPTIONS
Click on Drum Part Numbers for More Drum Information
Drum/Rotor NumberBrake SizeNotes
63680F7.50For 19.5" and 17.5" Tire Applications

FLANGE MOUNT (FN) INFORMATION
