Webb Wheel Hub Detail

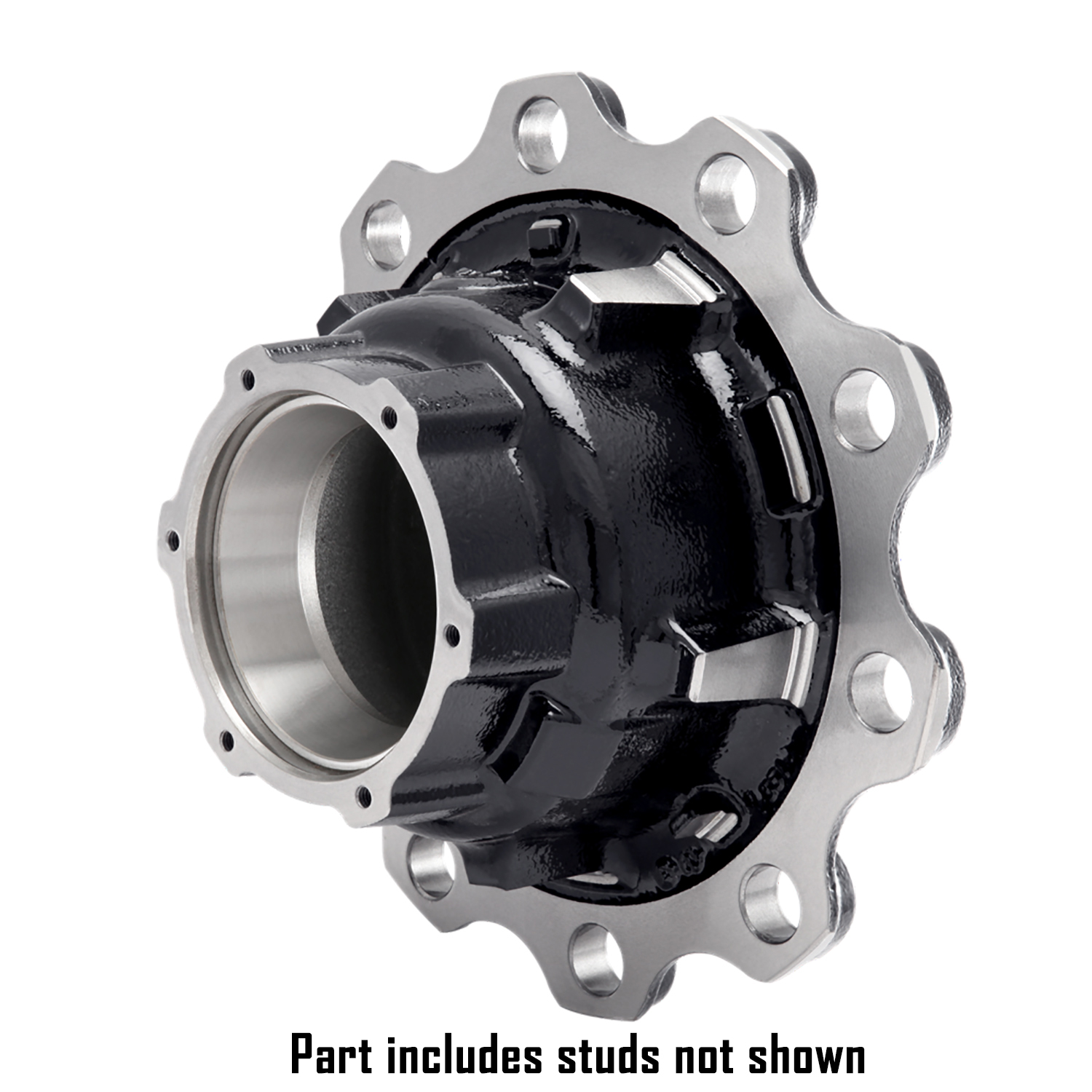

20231--3T photo

HUB INFORMATION
Part Number: 20231--3T
Hub Number: 2023
Description: 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud
Hub Material: Cast
Mounting Type: FN
Drum Type: Outboard
Disc Wheel: Steel (Dual)
Wheel Stud: 101162
Stud Stand Out: 3.25
ABS Ring: Direct Machined ABS
Drum Options: 61577F, 68985F, 66800F, 66864F, 66884F, 66814F, 66854F, 66871B
Drum Type: Outboard
Number of Studs: 10
Bolt Circle: 11.25
Stud Description: M22 x 1.5MM Serrated Stud
Outer Bearing Cup: HM212011
Outer Bearing Cone: HM212049
Inner Bearing Cup: HM218210
Inner Bearing Cone: HM218248
Webb Axle Group: 2
Cup Code: 1
Notes: Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.
This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.
Grease Hubcap Kit: 73655.

lineart

AXLE MANUFACTURER



AXLE MANUFACTURER
ArvinMeritor (Rockwell)
RN, RQ, TKN, TN, TQ, TQC, TQD

Dana Spicer (Eaton)
D-22, K-22, J, JE, JH, 23L, 23R

Dexter
D200K, D225K

Hendrickson
HN

Ingersoll
A22H, A22S, A22T, DC22H, F22

K-B
KBW-KBS

Standard Forge
A22H, A-22S, A22T

Westport
F3W-1600, F3W-1800/2000, F3W- 1800D/2000D, F6W-1600

DRUM OPTIONS
Click on Drum Part Numbers for More Drum Information
Drum/Rotor NumberBrake SizeNotes
61577B7.000.50 Back Plate Thickness
61577F7.000.50 Back Plate Thickness
61988B8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
61988F8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
61991B8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
61991F8.620.50 Back Plate Thickness/For 19.5" Disc Wheel Approved for 19.5 disc wheels
66800B8.000.56 Back Plate Thickness
66800F8.000.56 Back Plate Thickness
66814B8.627 inch centerline
66814F8.627 inch centerline
66854B8.620.56 Back Plate Thickness Oil Groove
66854F8.620.56 Back Plate Thickness Oil Groove
66864B7.000.50 Back Plate Thickness/Heavy Duty Drum
77864BW7.000.50 Back Plate Thickness/Heavy Duty Drum
66864F7.000.50 Back Plate Thickness/Heavy Duty Drum
66871B10.000.50 Back Plate Thickness
66871B10.000.50 Back Plate Thickness
66884B7.000.50 Back Plate Thickness/Extra Heavy Duty Drum
66884F7.000.50 Back Plate Thickness/Extra Heavy Duty Drum

FLANGE MOUNT (FN) INFORMATION
Disc Wheel: Steel
Tire Application: Dual
Total Disc Wheel Thickness: .75 to 1.00
Drum Type: Cast
Right Hand Stud: 101162
Stud Color: Black
Stud Standout: 3.03
Order Code: 3


Disc Wheel: Aluminum
Tire Application: Single
Total Disc Wheel Thickness: .84 to 1.00
Drum Type: Cast
Right Hand Stud: 101162
Stud Color: Black
Stud Standout: 3.03
Order Code: 3


Disc Wheel: 1 1/8" Alum. (Super
Tire Application: Single
Total Disc Wheel Thickness: 1.12
Drum Type: Cast
Right Hand Stud: 101162
Stud Color: Black
Stud Standout: 3.03
Order Code: 3
