Webb Wheel Hub Detail

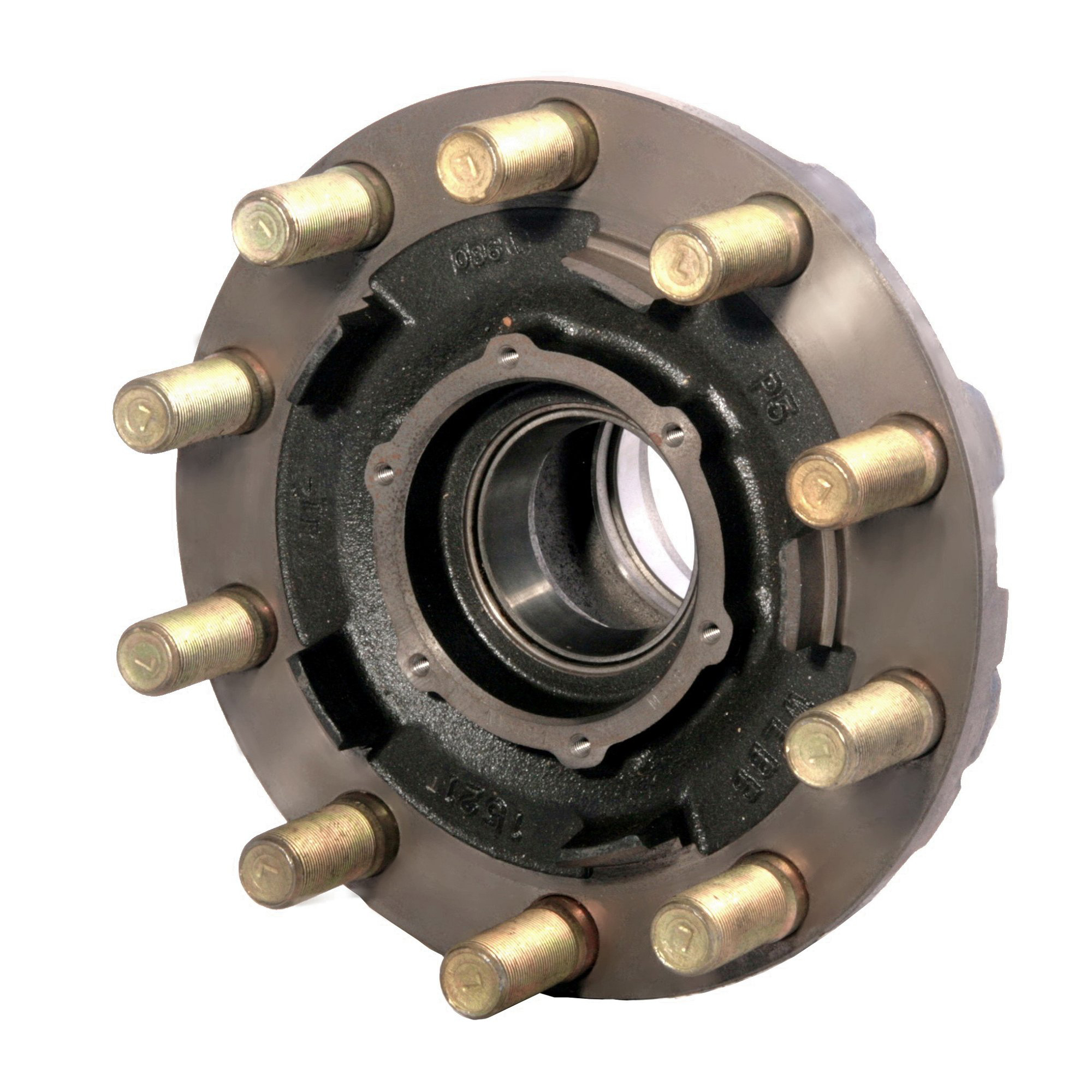

1521F--NT photo

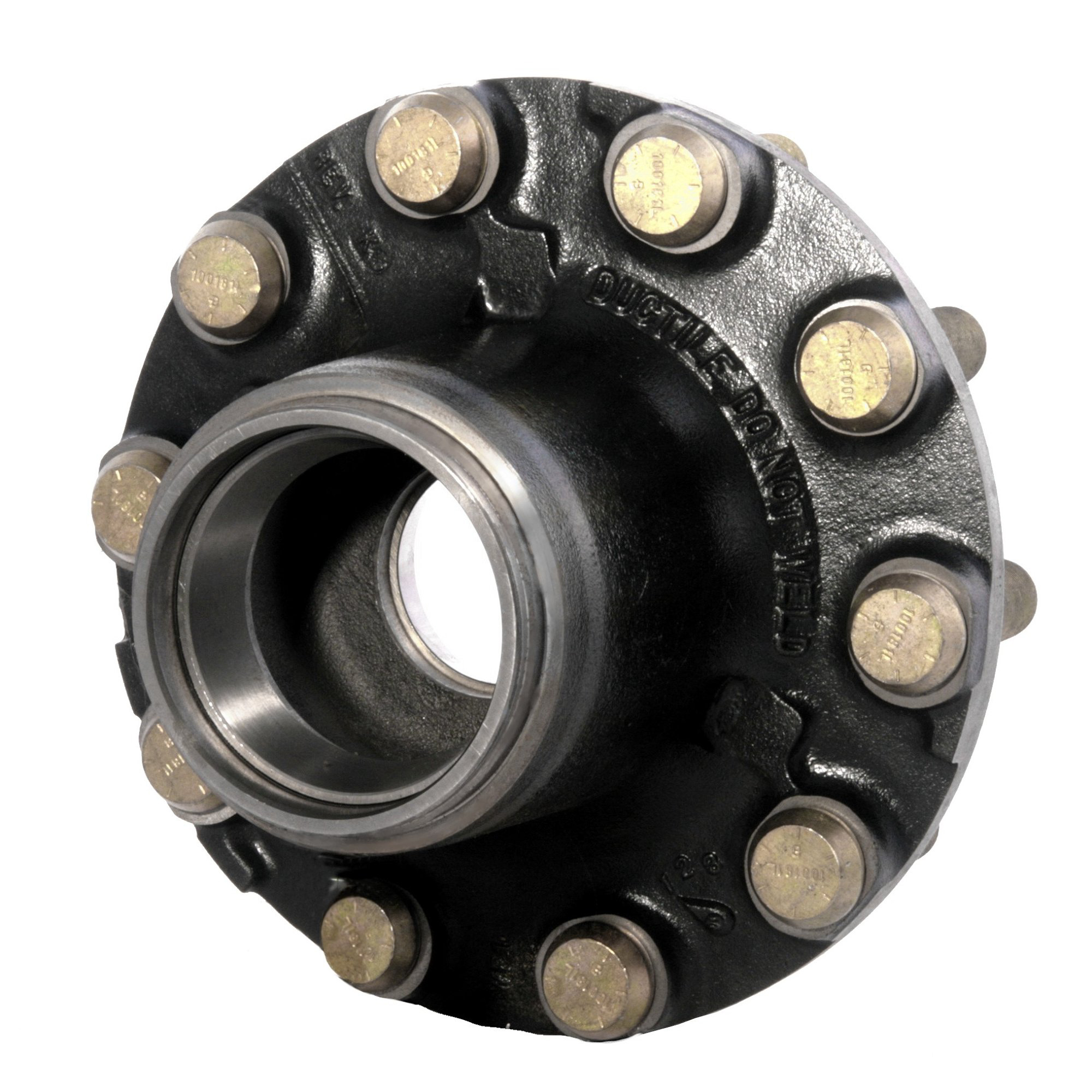

1521F--NT photo

HUB INFORMATION
Part Number: 1521F--NT
Hub Number: 1521
Description: 10 Stud Hub w/11.25 Dia. Bolt Circle. Uses Outboard Drum - (1 1/8" - 16) Serrated Stud
Hub Material: Cast
Mounting Type: BSN
Drum Type: Outboard
Disc Wheel: N/A
Wheel Stud: N/A
Stud Stand Out: N/A
ABS Ring: 51053
Drum Options: 65541B, 65551B, 65651B, 65167B, 65169B
Drum Type: Outboard
Number of Studs: 10
Bolt Circle: 11.25
Stud Description: 1 1/8" - 16 Serrated Stud
Outer Bearing Cup: 3720
Outer Bearing Cone: 3782
Inner Bearing Cup: HM212011
Inner Bearing Cone: HM212047 or HM212049 or HM212049X
Webb Axle Group: 11
Cup Code: F
Notes: Stud Standout (Cast drums): Dimensions shown are for brake drums having (.62) back plate thickness.

Grease Hubcap Kit: 73655

lineart

AXLE MANUFACTURER



AXLE MANUFACTURER
ArvinMeritor (Rockwell)
FF-931, FF-941, FF-942, FF-943, FF-944, FF-961, FG-900, FG-931, FG-941, FG-942, FG-943, MFS-13, MFS-14

Dana Spicer (Eaton)
D-22, K-22

Westport
F3W-1600, F3W-1800/2000, F3W-1800D/2000, F6W-1600

DRUM OPTIONS
Click on Drum Part Numbers for More Drum Information
Drum/Rotor NumberBrake SizeNotes
65167B6.000.62 Back Plate Thickness
65169B6.000.62 Back Plate Thickness Notched
65541B4.00
65551B5.000.50 Back Plate Thickness
65651B5.000.62 Back Plate Thickness
