Webb Wheel Hub Detail

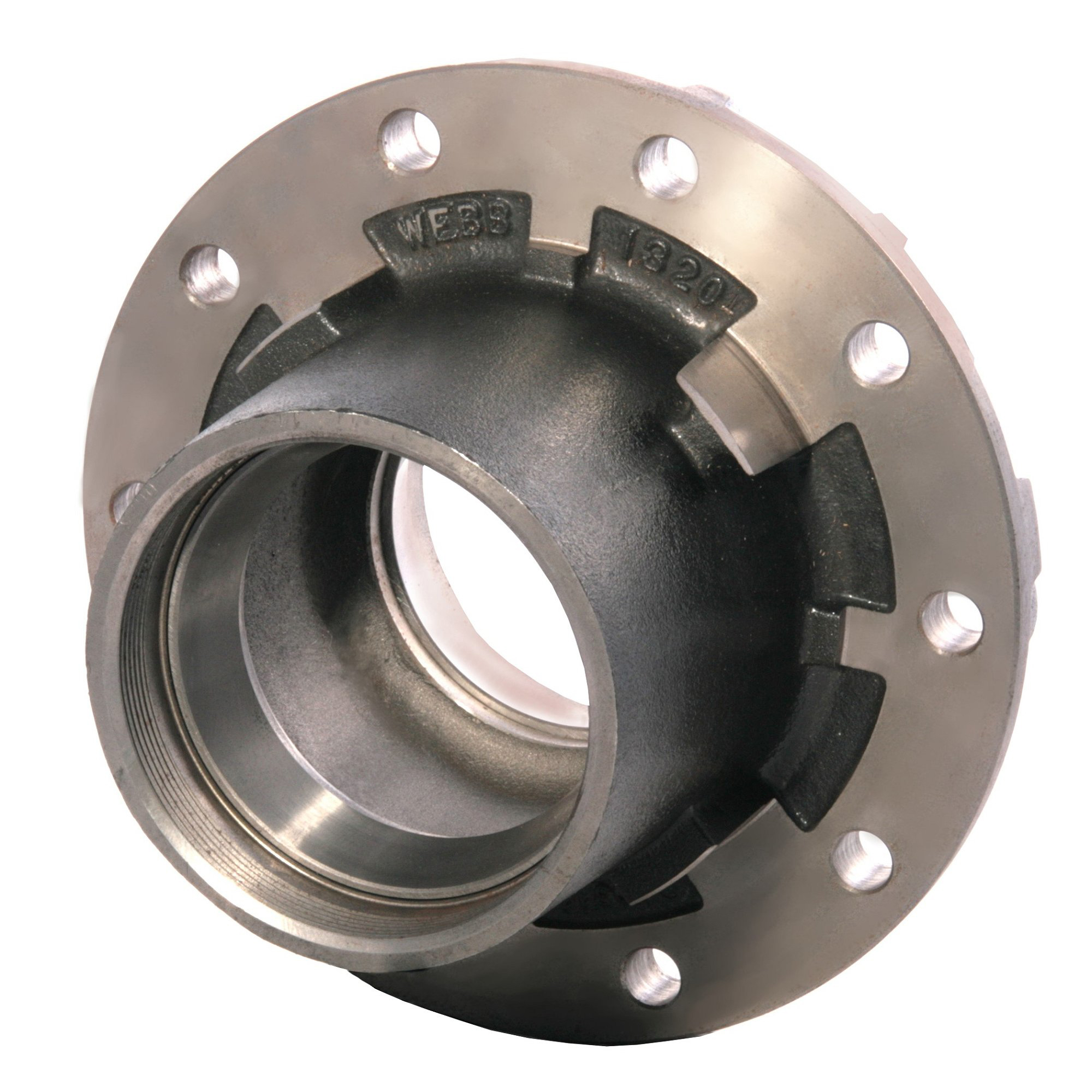

1320Z--NT photo

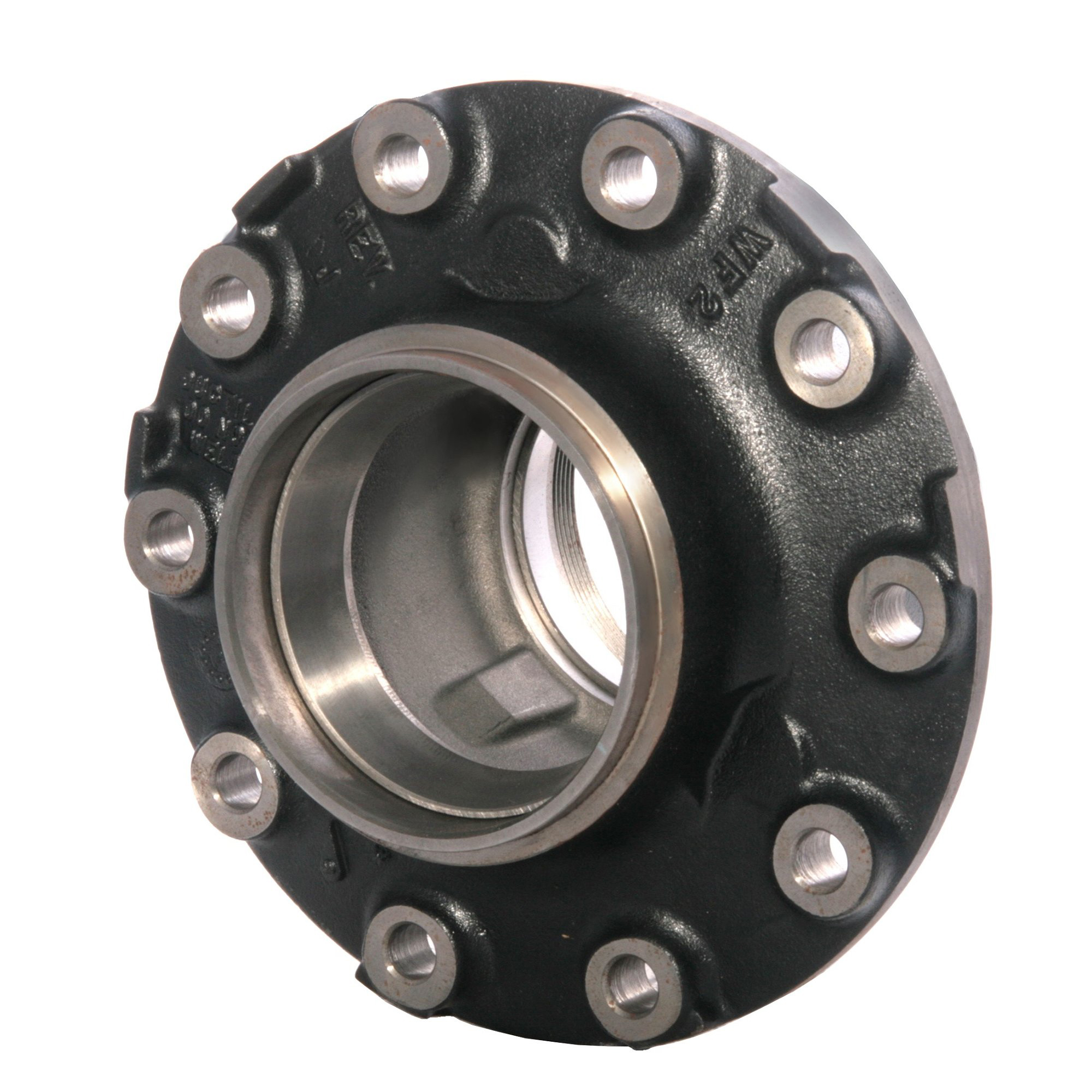

1320Z--NT photo

HUB INFORMATION
Part Number: 1320Z--NT
Hub Number: 1320
Description: *Obsolete - 10 Stud Hub w/11.25 Dia. Bolt Circle. Uses Outboard Drum - (3/4"-16) Serrated Stud
Hub Material: Cast
Mounting Type: BSN
Drum Type: Outboard
Disc Wheel: N/A
Wheel Stud: N/A
Stud Stand Out: N/A
ABS Ring: 51554
Drum Options: 61571F, 66853B, 66893F, 66815F, 66812F
Drum Type: Outboard
Number of Studs: 10
Bolt Circle: 11.25
Stud Description: 3/4"-16 Shoulder Stud
Outer Bearing Cup: HM518410
Outer Bearing Cone: HM518445
Inner Bearing Cup: HM518410
Inner Bearing Cone: HM518445
Webb Axle Group: 4
Cup Code: Z
Notes: Obsolete - Use 23231--0T Assembly Only - Studs sold separately.
This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. A longer stud standout is not necessary when using Grade 8 inner cap nuts with aluminum disc wheels.


lineart

AXLE MANUFACTURER



AXLE MANUFACTURER
ArvinMeritor (Rockwell)
TP

Dana Spicer (Eaton)
P-22, 225P, 230P

Fruehauf
PRO-PAR

Hendrickson
HP

Ingersoll
A24H, A24S, F24

DRUM OPTIONS
Click on Drum Part Numbers for More Drum Information
Drum/Rotor NumberBrake SizeNotes
61571F7.00
66812B8.62 Notched
66812F8.62 Notched
66853B7.00
66893B7.00
66893F7.00
