Webb Wheel Hub Detail

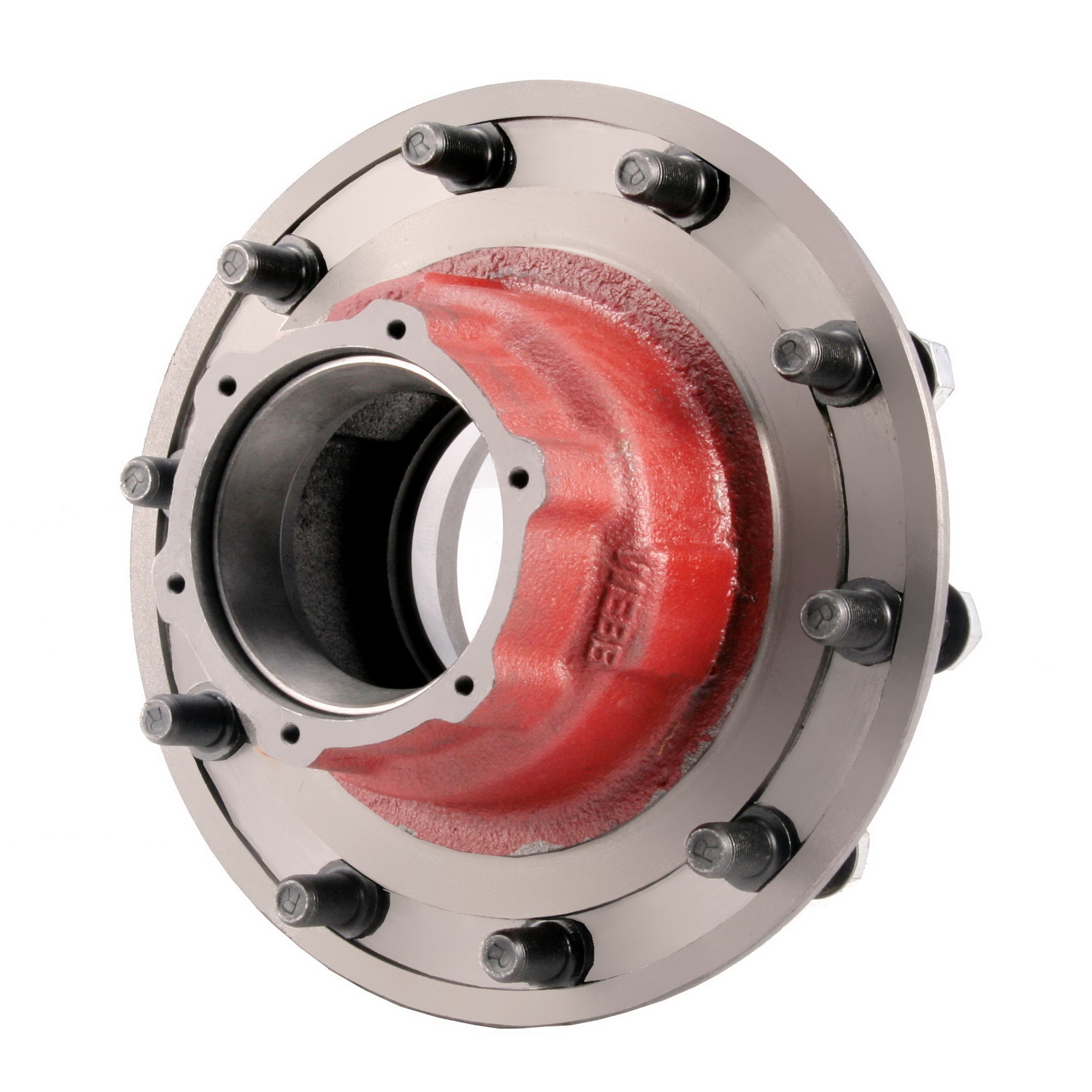

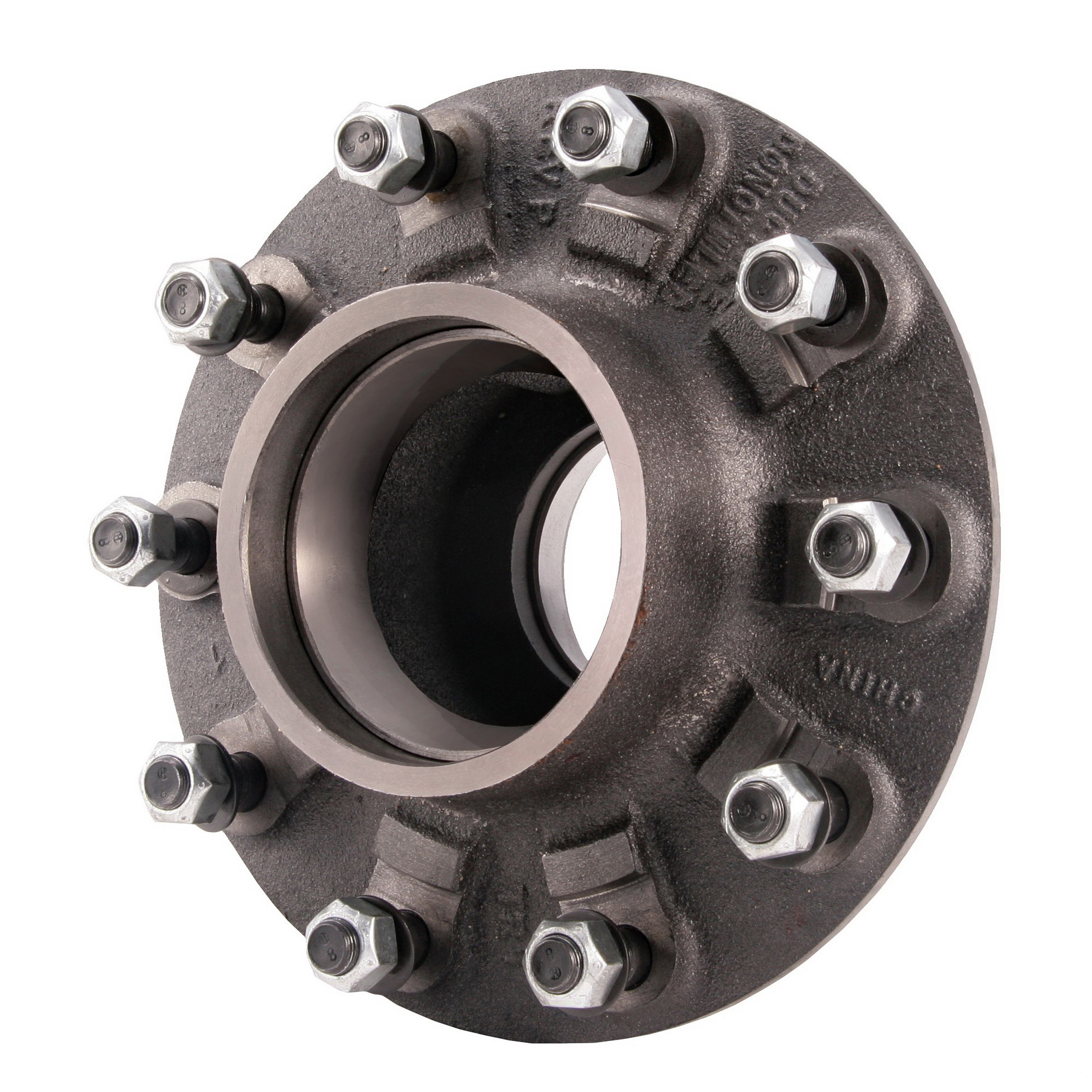

12213--MR photo

12213--MR photo

HUB INFORMATION
Part Number: 12213--MR
Hub Number: 1221
Description: 10 Stud Hub w/11.25 Dia. Bolt Circle. Uses Inboard Drum - (3/4"-16) Shoulder Stud
Hub Material: Cast
Mounting Type: BSN
Drum Type: Inboard
Disc Wheel: Steel/Alum (Dual)
Wheel Stud: 139902
Stud Stand Out: 1.33
ABS Ring: ABS Not Available
Drum Options: 64467F, 62200F, 68891F, 67205F
Drum Type: Inboard
Number of Studs: 10
Bolt Circle: 11.25
Stud Description: 3/4"-16 Shoulder Stud
Outer Bearing Cup: HM212011
Outer Bearing Cone: HM212049
Inner Bearing Cup: 653
Inner Bearing Cone: 663 or 665A
Webb Axle Group: 1
Cup Code: 3
Notes: Obsolete with no replacement
This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. A longer stud standout is not necessary when using Grade 8 inner cap nuts with aluminum disc wheels.
Grease Hubcap Kit: 73655

lineart

AXLE MANUFACTURER



AXLE MANUFACTURER
ArvinMeritor (Rockwell)
RL, TK, TL, TKLD, TKL

Ingersoll


DRUM OPTIONS
Click on Drum Part Numbers for More Drum Information
Drum/Rotor NumberBrake SizeNotes
62200F7.00
64467F5.00
67205F10.00
68891B8.62
68891F8.62

BALL SEAT MOUNT (BSN) INFORMATION
Disc Wheel: Steel
Tire Application: Dual
Drum Type: Cast
Right Hand Stud: 139902
Right Hand Stud Color: Black
Stud Stand Out: 1.33
Order Code: M


Disc Wheel: Aluminum
Tire Application: Dual
Drum Type: Cast
Right Hand Stud: 139902
Right Hand Stud Color: Black
Stud Stand Out: 1.33
Order Code: M
