Webb Wheel Hub Detail

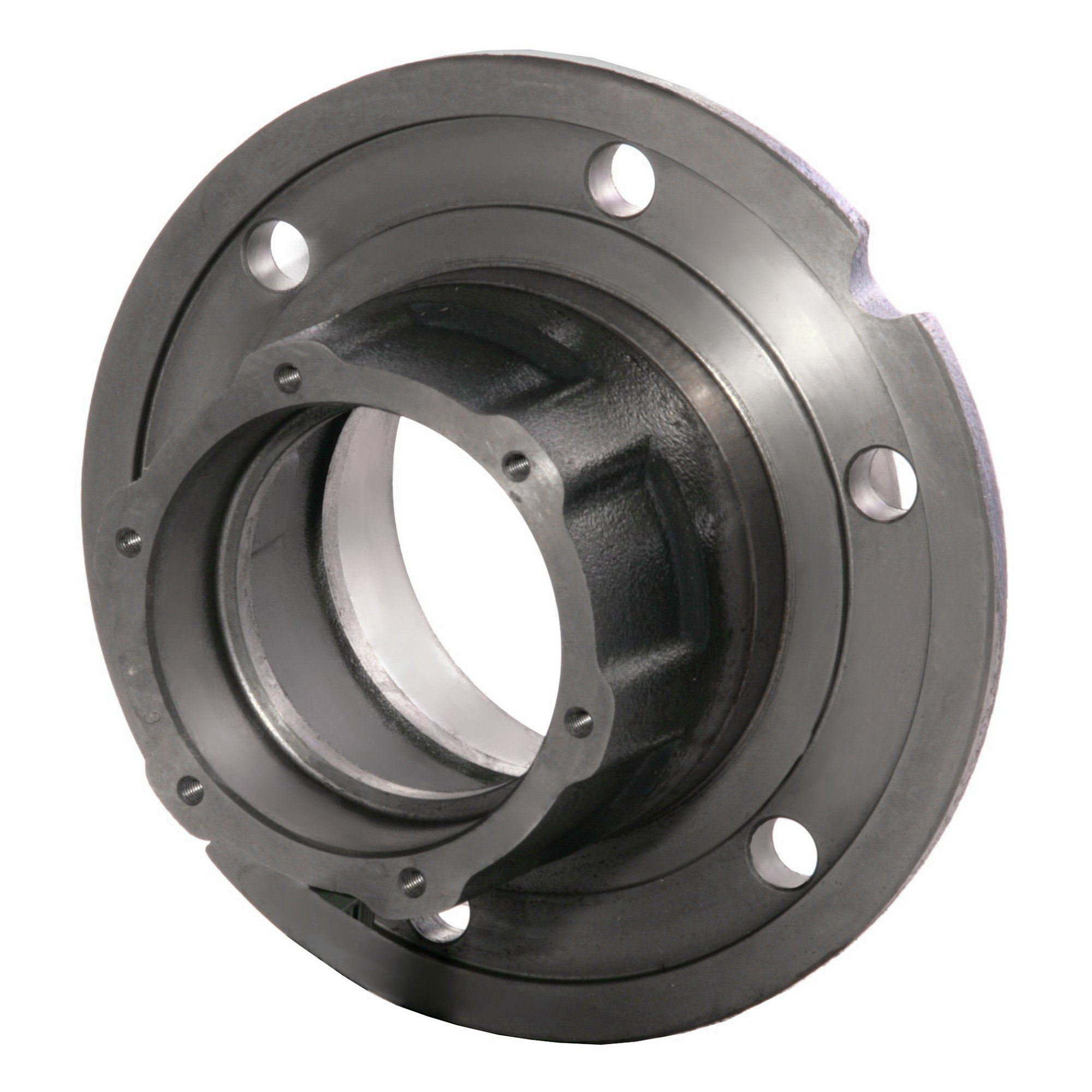

10569--NT80 photo

HUB INFORMATION
Part Number: 10569--NT80
Hub Number: 1056
Description: 6 Stud Hub w/8.75 Dia. Bolt Circle. Uses Inboard Drum (3/4"-16) Shoulder Stud
Hub Material: Cast
Mounting Type: BSN
Drum Type: Inboard
Disc Wheel: N/A
Wheel Stud: N/A
Stud Stand Out: N/A
ABS Ring: Direct Machined ABS
Drum Options: 63634F, 63635F
Drum Type: Inboard
Number of Studs: 6
Bolt Circle: 8.75
Stud Description: 3/4"-16 Shoulder Stud
Outer Bearing Cup: HM212011
Outer Bearing Cone: HM212049
Inner Bearing Cup: HM218210
Inner Bearing Cone: HM218248
Webb Axle Group: 2
Cup Code: 9
Notes:
This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. A longer stud standout is not necessary when using Grade 8 inner cap nuts with aluminum disc wheels.
Grease Hubcap Kit: 73655
Drum Fasteners: Flat Washer--P/N 257. Lock Nut: P/N 75716
lineart

AXLE MANUFACTURER



AXLE MANUFACTURER
ArvinMeritor (Rockwell)
RN, RQ, TKN, TN, TQ, TQC, TQD

Dana Spicer (Eaton)
D-22, K-22, J, JE, JH, 23L, 23R

Dexter
D200K, D225K

Hendrickson
HN

Ingersoll
A22H, A22S, A22T, DC22H, F22

K-B
KBW-KBS

Standard Forge
A22H, A-22S, A22T

Westport
F3W-1600, F3W-1800/2000, F3W- 1800D/2000D, F6W-1600

DRUM OPTIONS
Click on Drum Part Numbers for More Drum Information
Drum/Rotor NumberBrake SizeNotes
63634F5.50
63654F7.5
