Webb Wheel Hub Detail

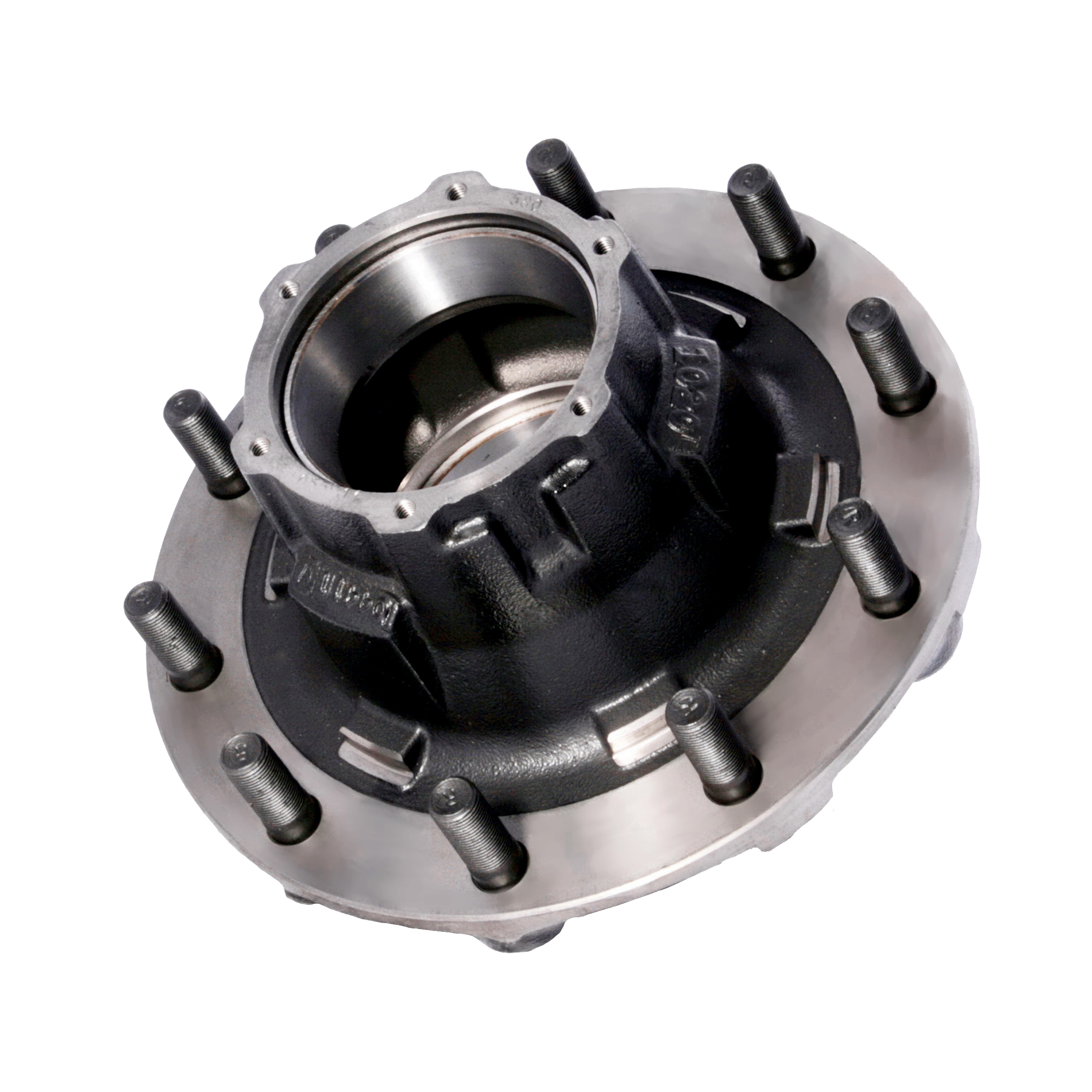

10209--MR photo

HUB INFORMATION
Part Number: 10209--MR
Hub Number: 1020
Description: 10 Stud Hub w/11.25 Dia. Bolt Circle. Uses Outboard Drum (3/4"-16) Stud
Hub Material: Cast
Mounting Type: BSN
Drum Type: Outboard
Disc Wheel: Steel or Alum
Wheel Stud: 159184
Stud Stand Out: N/A
ABS Ring: N/A
Drum Options: 61571F, 66853B, 66893F, 66815F, 66812F
Drum Type: Outboard
Number of Studs: 10
Bolt Circle: 11.25
Stud Description: 3/4"-16 Serrated Stud
Outer Bearing Cup: HM212011
Outer Bearing Cone: HM212049
Inner Bearing Cup: HM218210
Inner Bearing Cone: HM218248
Webb Axle Group: 2
Cup Code: 9
Notes:
This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. A longer stud standout is not necessary when using Grade 8 inner cap nuts with aluminum disc wheels.
Grease Hubcap Kit: 73655

lineart

AXLE MANUFACTURER



AXLE MANUFACTURER
ArvinMeritor (Rockwell)
RN, RQ, TKN, TN, TQ, TQC, TQD

Dana Spicer (Eaton)
D-22, K-22, J, JE, JH, 23L, 23R

Dexter
D200K, D225K

Hendrickson
HN

Ingersoll
A22H, A22S, A22T, DC22H, F22

K-B
KBW-KBS

Standard Forge
A22H, A-22S, A22T

Westport
F3W-1600, F3W-1800/2000, F3W- 1800D/2000D, F6W-1600

DRUM OPTIONS
Click on Drum Part Numbers for More Drum Information
Drum/Rotor NumberBrake SizeNotes
61571F7.00
66812B8.62 Notched
66812F8.62 Notched
66853B7.00
66893B7.00
66893F7.00

BALL SEAT MOUNT (BSN) INFORMATION
Disc Wheel: Steel
Tire Application: Dual
Drum Type: Cast
Right Hand Stud: 159184
Right Hand Stud Color: Black
Stud Stand Out: 1.86
Order Code: M
