Webb Wheel Drum Detail

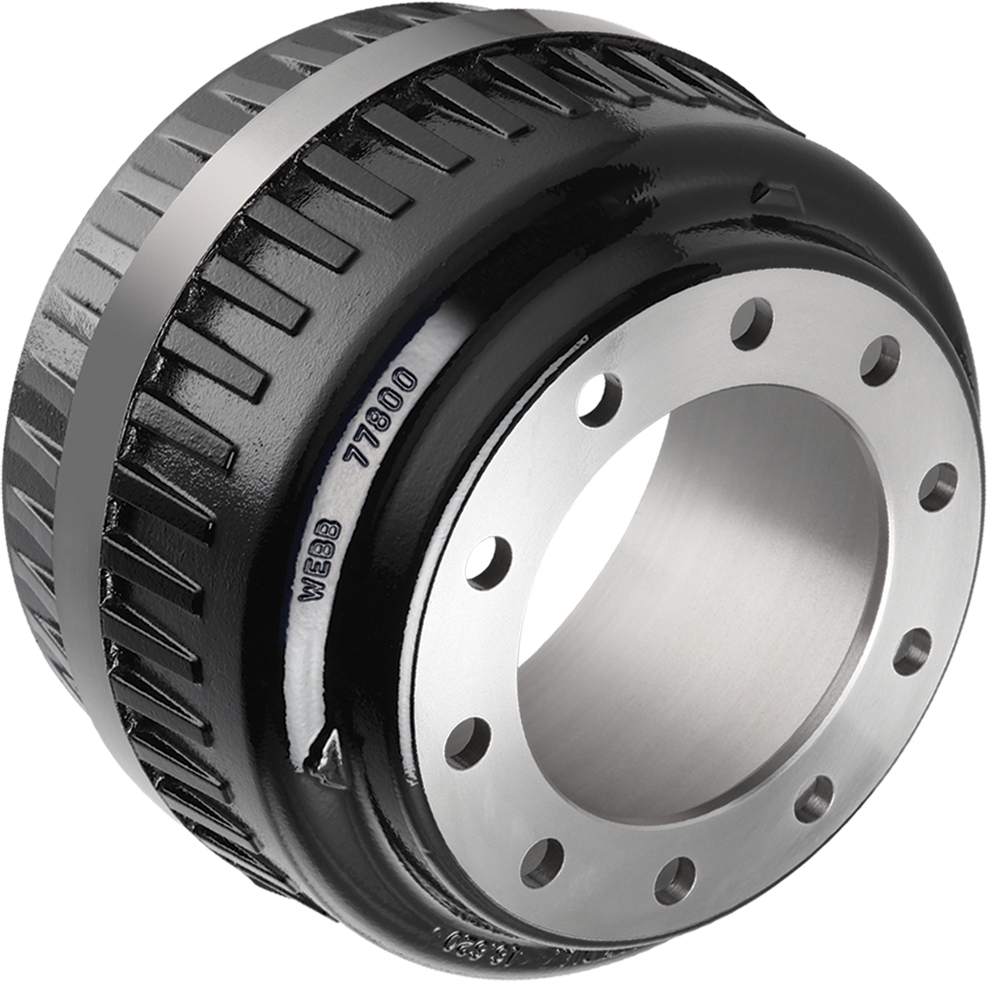

77800BW20 photo

drum art

DRUM INFORMATION
Drum Part Number: 77800BW20
Weight: 119
Brake Shoe Width: 8"
Back Plate Thickness: 0.56
Drum Type:
V photo
Mount: Outboard
Brake Surface Diameter: 16.50
Overall Depth: 11.15
Brake Surface Flat: 8.66
Pilot Diameter: 8.78
Bolt Circle Diameter: 11.25
Bolt Hole (Number): 10
Bolt Hole Size: 1.00
Maximum Wear Diameter: 16.62
Notes: Pallet of 20-77800BW's
