Webb Wheel Drum Detail

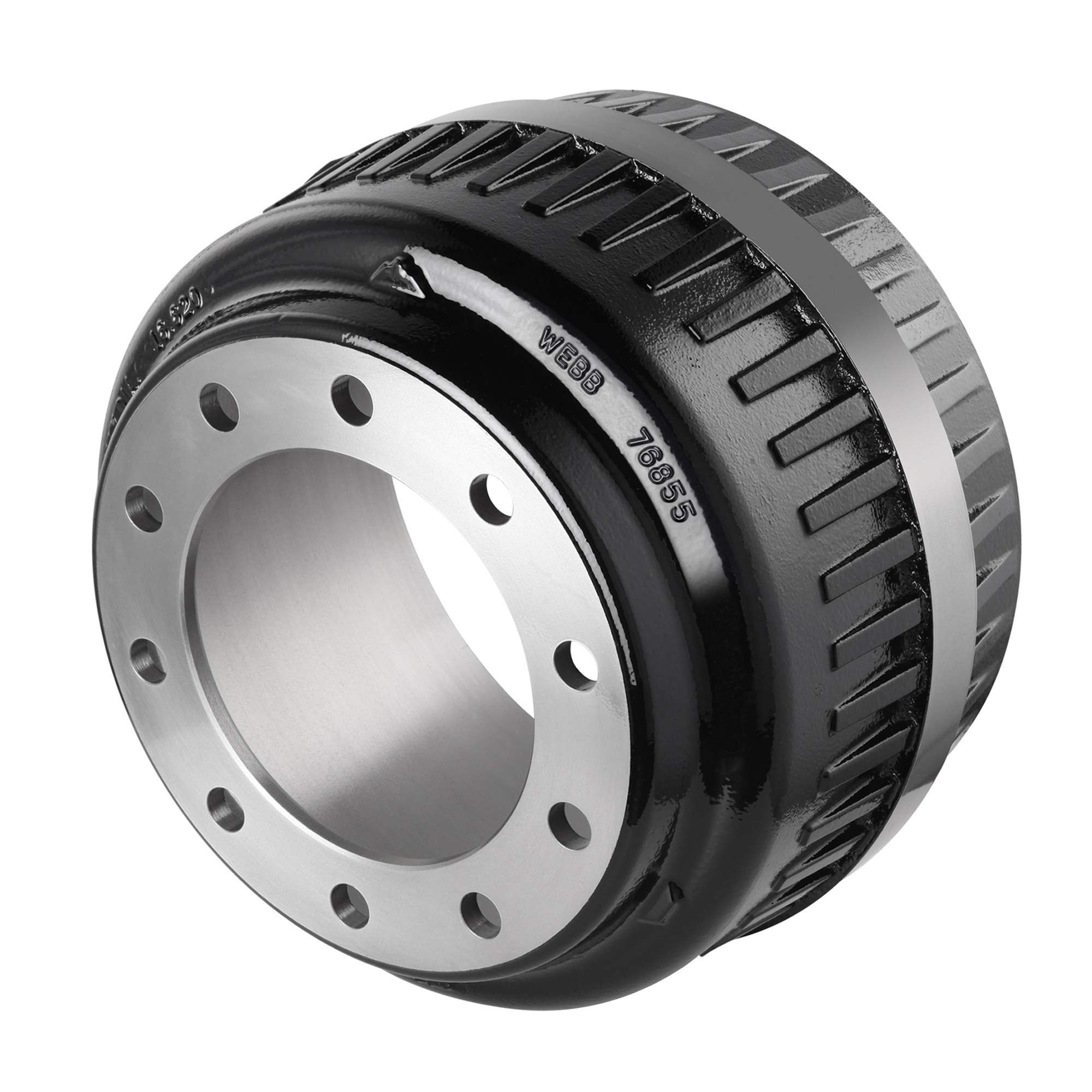

DRUM INFORMATION
Drum Part Number: 76855B
Weight: 113
Brake Shoe Width: 8.62"
Back Plate Thickness: .56
Drum Type:
Mount: Outboard
Brake Surface Diameter: 16.50
Overall Depth: 11.46
Brake Surface Flat: 8.99
Pilot Diameter: 8.78
Bolt Circle Diameter: 11.25
Bolt Hole (Number): 10
Bolt Hole Size: 1.00
Maximum Wear Diameter: 16.620
Notes: Can use 77854BW
