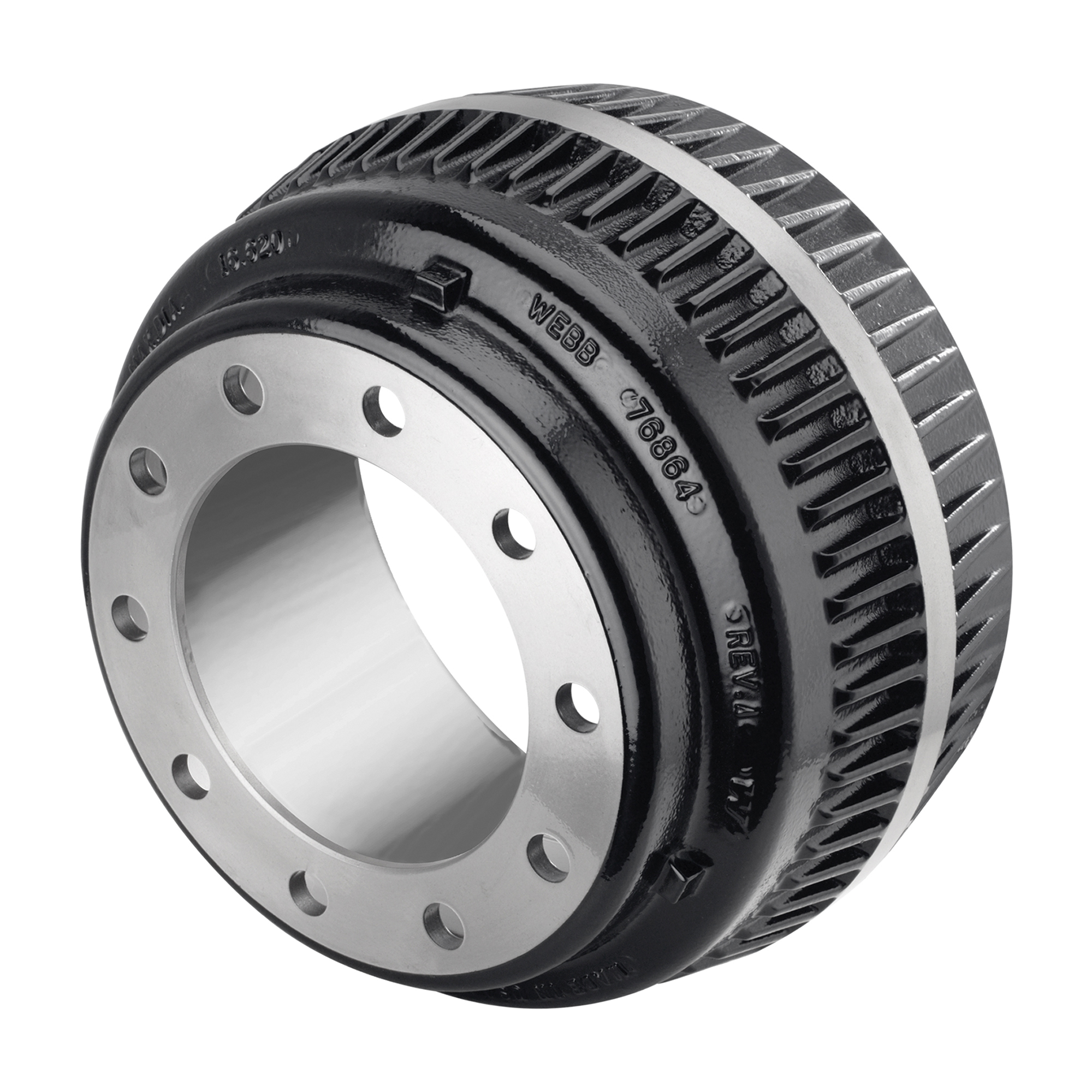

Webb Wheel Drum Detail
DRUM INFORMATION
Drum Part Number: 76800B
Weight: 111
Brake Shoe Width: 8"
Back Plate Thickness: .56
Drum Type:
Mount: Outboard
Brake Surface Diameter: 16.50
Overall Depth: 11.15
Brake Surface Flat: 8.66
Pilot Diameter: 8.78
Bolt Circle Diameter: 11.25
Bolt Hole (Number): 10
Bolt Hole Size: 1.00
Maximum Wear Diameter: 16.620
Notes: Can use 77800BW
