Webb Wheel Drum Detail

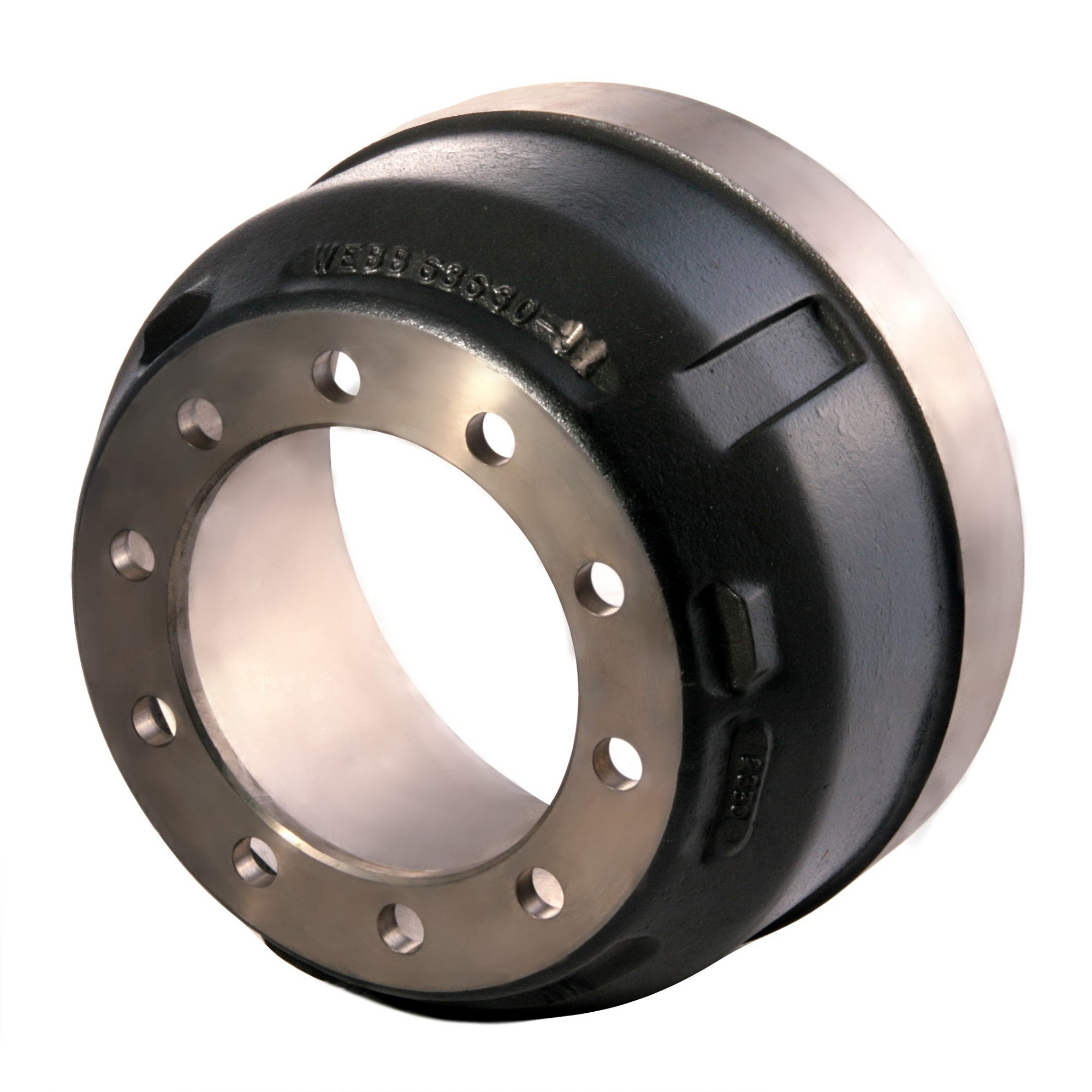

63630F photo

drum art

DRUM INFORMATION
Drum Part Number: 63630F
Weight: 71
Brake Shoe Width: 5.5
Back Plate Thickness: 0.50
Drum Type:
H photo
Mount: Inboard
Brake Surface Diameter: 12.25
Overall Depth: 8.59
Brake Surface Flat: 6.25
Pilot Diameter: 7.12
Bolt Circle Diameter: 8.75
Bolt Hole (Number): 10
Bolt Hole Size: 0.81
Maximum Wear Diameter: 12.37
Notes:
