Webb Wheel Drum Detail

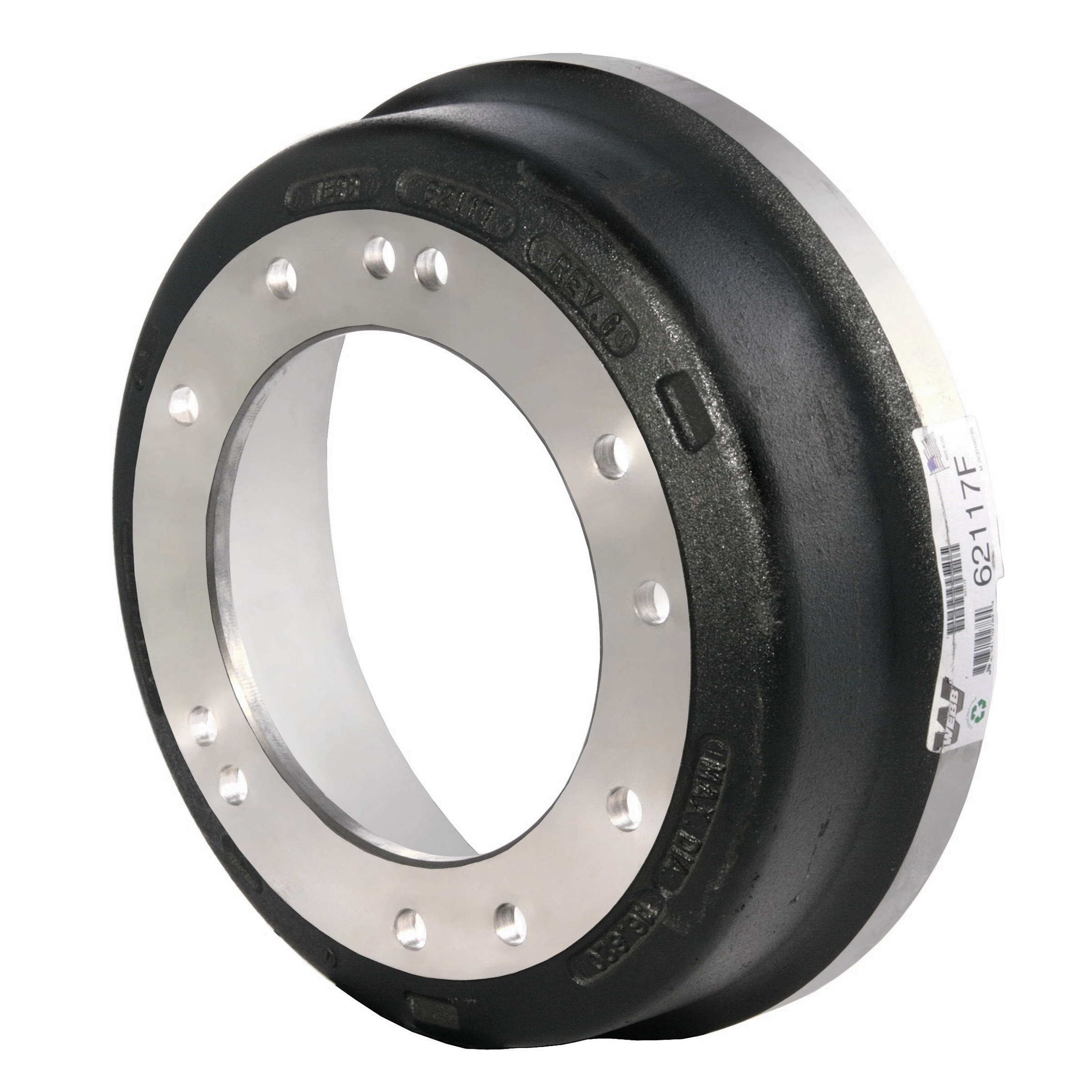

62117F photo

drum art

DRUM INFORMATION
Drum Part Number: 62117F
Weight: 87
Brake Shoe Width: 5"
Back Plate Thickness: 0.56
Drum Type:
A photo
Mount: Inboard
Brake Surface Diameter: 16.50
Overall Depth: 6.41
Brake Surface Flat: 5.33
Pilot Diameter: 10.00
Bolt Circle Diameter: 12.75
Bolt Hole (Number): 5 or 6
Bolt Hole Size: 0.78
Maximum Wear Diameter: 16.62
Notes:
