Webb Wheel Hubs
Webb hubs are available for steel or aluminum disc wheels and are the preferred choice due to high product quality and convenient packaging. Our complete line includes heavy-duty hubs and hub assemblies for multiple trailer applications. Trailer axle hub assemblies are available in all popular brake sizes using brake drums or rotors. Hubs are available with or without ABS.

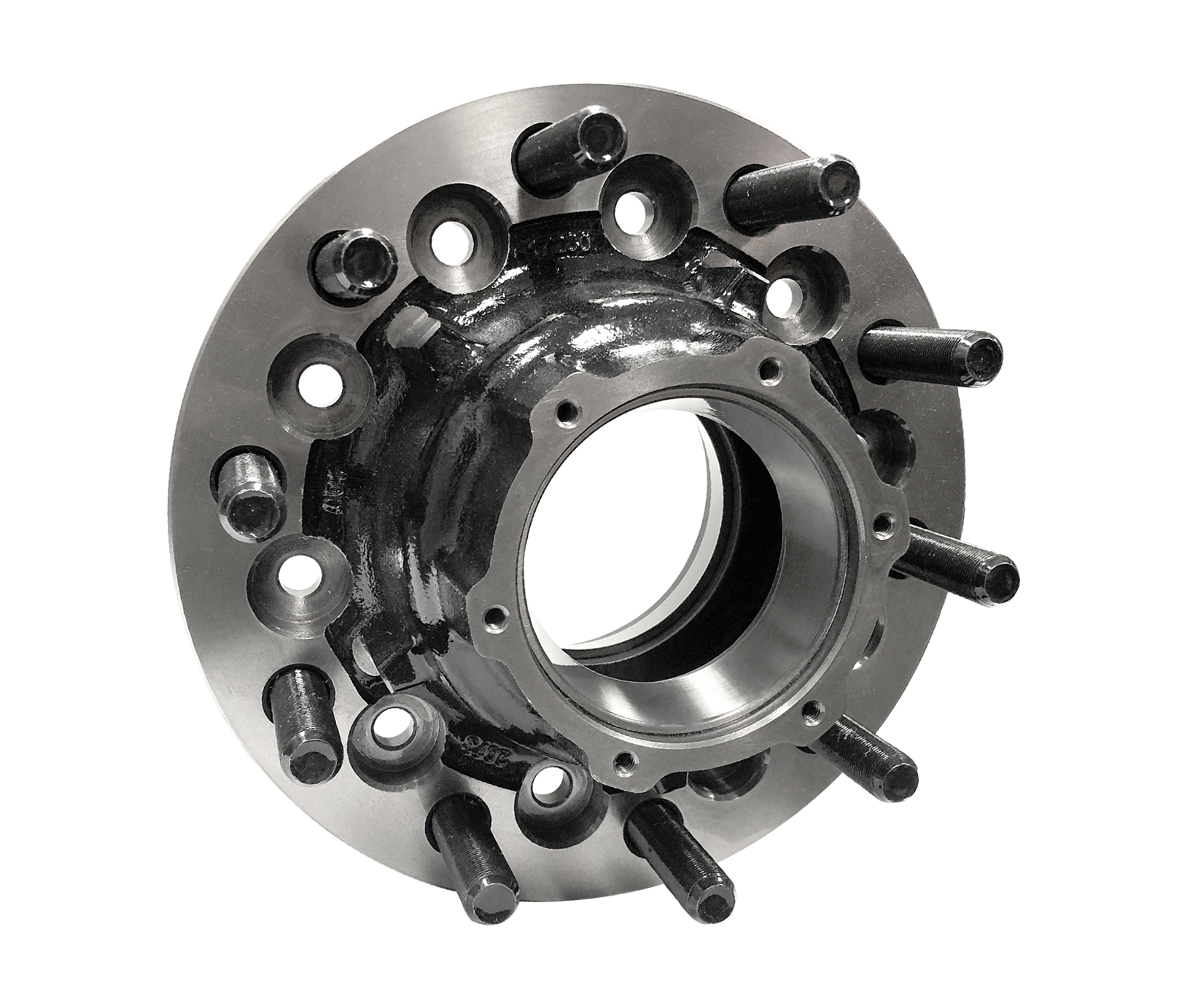

Popular Webb OEM Trailer Hub Models
Click on hub numbers below for more information.
| Click on Hub Model Number Below for More Detail | Description | Mounting Type | Disc Wheel | Notes |
| 20232--3T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud Stemco | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 20231--3T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20232--5T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud Stemco | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 20231--5T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20232RK3T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. 66864B Outboard Drum (M22 x 1.5) Serrated Stud Stemco | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 20231--3T and 66864B This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20232RK5T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. 66864B Outboard Drum (M22 x 1.5) Serrated Stud Stemco | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 20231--5T and 66864B This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20232VG3T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. 77864B Outboard Drum (M22 x 1.5) Serrated Stud Stemco | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 20231--3T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20232VG5T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. 77864B Outboard Drum (M22 x 1.5) Serrated Stud Stemco | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 20231--5T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20232VH3T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. 77864BW Outboard Drum (M22 x 1.5) Serrated Stud Stemco | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 20231--3T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20232VH5T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. 77864BW Outboard Drum (M22 x 1.5) Serrated Stud Stemco | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 20231--5T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20235--3T-71 | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug General | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 20231--3T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20235--5T-71 | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug General | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 20231--5T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20235RK3T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. 66864B Outboard Drum (M22 x 1.5) Serrated Stud General | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 20231--3T and 66864B This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20235RK5T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. 66864B Outboard Drum (M22 x 1.5) Serrated Stud General | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 20231--5T and 66864B This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20235VG3T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. 77864B Outboard Drum (M22 x 1.5) Serrated Stud General | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 20231--3T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20235VG5T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. 77864B Outboard Drum (M22 x 1.5) Serrated Stud General | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 20231--5T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20235VH3T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. 77864BW Outboard Drum (M22 x 1.5) Serrated Stud General | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 20231--3T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20235VH5T | 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. 77864BW Outboard Drum (M22 x 1.5) Serrated Stud General | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 20231--5T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20272CW3T80-71 | 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. 63680F Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Stud Stemco | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 20271--3T and 63680F This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20272CW5T80-71 | 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. 63680F Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Stud Stemco | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 20271--5T and 63680F This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20275--3T80-71 | 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug General | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 20271--3T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20275--5T80-71 | 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug General | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 20271--5T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20275CW3T80-71 | 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. 63680F Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Stud General | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 20271--3T and 63680F This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20275CW5T80-71 | 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. 63680F Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Stud General | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 20271--5T and 63680F This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 20732--3T | ADB 10 Stud Hub /11.25 (285.75MM)Dia. Bolt Circle. Uses U-Shaped Rotor (M22x1.5) Serrated Stud Stemco | TN | Steel (Dual) | OEM Part Number Aftermarket P/N: 20731--0T and 101162 studs separate |
| 20732--5T | ADB 10 Stud Hub /11.25 (285.75MM)Dia. Bolt Circle. Uses U-Shaped Rotor (M22x1.5) Serrated Stud Stemco | TN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 20731--0T and 101160 studs separate |
| 20735--3T | ADB 10 Stud Hub /11.25 (285.75MM)Dia. Bolt Circle. Uses U-Shaped Rotor (M22x1.5) Serrated Stud General | TN | Steel (Dual) | OEM Part Number Aftermarket P/N: 20731--0T and 101162 studs separate |
| 20735--5T | ADB 10 Stud Hub /11.25 (285.75MM)Dia. Bolt Circle. Uses U-Shaped Rotor (M22x1.5) Serrated Stud General | TN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 20731--0T and 101160 studs separate |
| 23432--3T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated Stud Stemco | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23431--3T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23432--3T-71 | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug Stemco | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23431--3T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23432--5T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated Stud Stemco | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23431--5T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23432--5T-71 | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug Stemco | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23431--5T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23432RK3T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 66864B Outboard Drum - (M22 x 1.5) Serrated Stud Stemco | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23431--3T and 66864B This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23432RK5T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 66864B Outboard Drum - (M22 x 1.5) Serrated Stud Stemco | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23431--5T and 66864B This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23432VG3T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77864B Outboard Drum - (M22 x 1.5) Serrated Stud Stemco | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23431--3T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23432VG5T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77864B Outboard Drum - (M22 x 1.5) Serrated Stud Stemco | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23431--5T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23432VH3T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77864BW Outboard Drum - (M22 x 1.5) Serrated Stud Stemco | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23431--3T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23432VH5T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77864BW Outboard Drum - (M22 x 1.5) Serrated Stud Stemco | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23431--5T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23432VJ3T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77854B Outboard Drum - (M22 x 1.5) Serrated Stud Stemco | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23431--3T and 77854BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23432VJ5T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77854B Outboard Drum - (M22 x 1.5) Serrated Stud Stemco | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23431--5T and 77854BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23432VK3T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77854BW Outboard Drum - (M22 x 1.5) Serrated Stud Stemco | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23431--3T and 77854BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23432VK5T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77854BW Outboard Drum - (M22 x 1.5) Serrated Stud Stemco | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23431--5T and 77854BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23435--3T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated Stud General | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23431--3T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23435--3T-71 | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug General | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23431--3T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23435--5T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated Stud General | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23431--5T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23435--5T-71 | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug General | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23431--5T This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23435VH3T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77864BW Outboard Drum - (M22 x 1.5) Serrated Stud General | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23431--3T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23435VH5T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77864BW Outboard Drum - (M22 x 1.5) Serrated Stud General | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23431--5T and 77864BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23435VJ3T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77854B Outboard Drum - (M22 x 1.5) Serrated Stud General | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23431--3T and 77854BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23435VJ5T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77854B Outboard Drum - (M22 x 1.5) Serrated Stud General | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23431--5T and 77854BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23435VK3T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77854BW Outboard Drum - (M22 x 1.5) Serrated Stud General | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23431--3T and 77854BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23435VK5T | 10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. 77854BW Outboard Drum - (M22 x 1.5) Serrated Stud General | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23431--5T and 77854BW This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23472CW3T80-71 | 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. 63680F Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug Stemco | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23471--3T80 and 63680F This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23472CW5T80-71 | 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. 63680F Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug Stemco | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23471--5T80 and 63680F This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23475--3T80-71 | 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug General | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23471--3T80 This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23475--5T80-71 | 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug General | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23471--5T80 This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23475CW3T80-71 | 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. 63680F Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug General | FN | Steel (Dual) | OEM Part Number Aftermarket P/N: 23471--3T80 and 63680F This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23475CW5T80-71 | 8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. 63680F Outboard Drum (M22 x 1.5) Serrated Stud Oil Fill Hole & Plug General | FN | Aluminum (Dual) | OEM Part Number Aftermarket P/N: 23471--5T80 and 63680F This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. |
| 23732--3T | ADB 10 Stud Hub /11.25 (285.75MM)Dia. Bolt Circle. Uses U-Shaped Rotor (M22x1.5) Serrated Stud Stemco | TN | Steel (Dual) | OEM Part Number |
| 23732--5T | ADB 10 Stud Hub /11.25 (285.75MM)Dia. Bolt Circle. Uses U-Shaped Rotor (M22x1.5) Serrated Stud Stemco | TN | Aluminum (Dual) | OEM Part Number |
| 23735--3T | ADB 10 Stud Hub /11.25 (285.75MM)Dia. Bolt Circle. Uses U-Shaped Rotor (M22x1.5) Serrated Stud General | TN | Steel (Dual) | OEM Part Number |
| 23735--5T | ADB 10 Stud Hub /11.25 (285.75MM)Dia. Bolt Circle. Uses U-Shaped Rotor (M22x1.5) Serrated Stud General | TN | Aluminum (Dual) | OEM Part Number |
