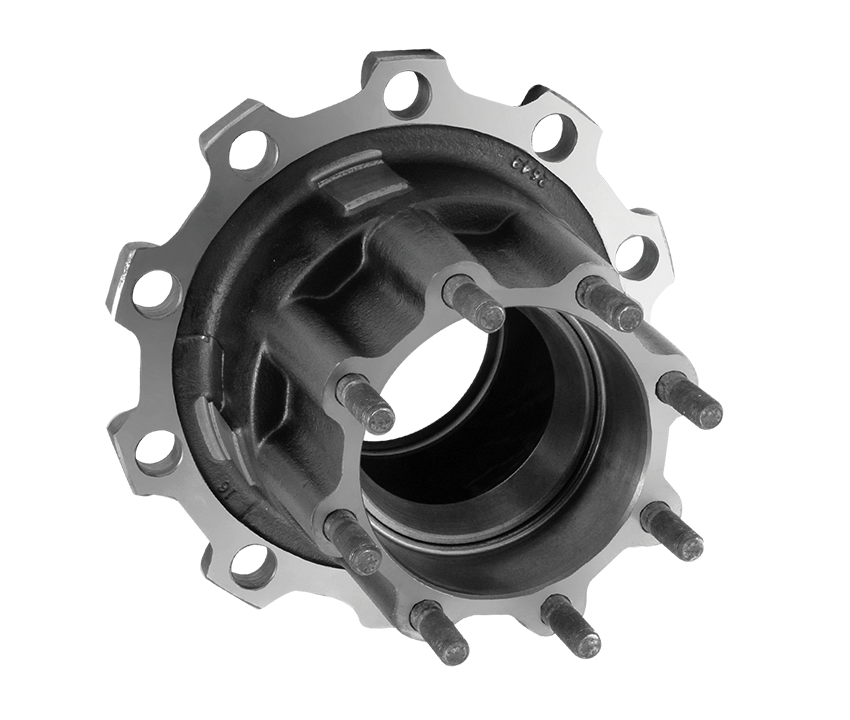

Webb Wheel Hubs

Webb hubs are available for steel or aluminum disc wheels and are the preferred choice due to high product quality and convenient packaging. Our complete line includes heavy-duty hubs and hub assemblies for steer and drive axle applications. Steer and drive axle hub assemblies are available for Class 6-7-8 trucks in all popular brake sizes using brake drums or rotors. Hubs are available with or without ABS.



Popular Webb OEM Truck Hub Models

Click on hub numbers below for more information.
Click on Hub Model Number Below for More DetailDescriptionMounting TypeDisc WheelNotesThread Direction
15501--ML6 Stud Hub w/8.75 Dia. Bolt Circle. For Disc Brake Applications with ABS - (3/4" - 16) Serrated StudBSNN/AOEM Part Number

Afm P/N 15501--N. No studs installed

Rotor Mounting Bolt: QTY 6--P/N 87511(3/4"-10 Thread Dia.). Rotor Mounting Bolt Washer: QTY 6--P/N 257

Hubcap not Available from Webb

Left Thread Direction
15501--MR6 Stud Hub w/8.75 Dia. Bolt Circle. For Disc Brake Applications with ABS - (3/4" - 16) Serrated StudBSNN/AOEM Part Number

Afm P/N 15501--N. No studs installed

Rotor Mounting Bolt: QTY 6--P/N 87511(3/4"-10 Thread Dia.). Rotor Mounting Bolt Washer: QTY 6--P/N 257

Hubcap not Available from Webb

Right Thread Direction
25191--1T10 Stud Hub w/11.25 (285.75mm) Dia. Bolt Circle. Uses Outboard Drum FNSteel (Single)OEM Part Number

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness

Hubcap not available from Webb

Right Thread Direction
25191--3T10 Stud Hub w/11.25 (285.75mm) Dia. Bolt Circle. Uses Outboard Drum FNAluminum (Single)OEM Part Number

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness

Hubcap not available from Webb

Right Thread Direction
25201--1T10 Stud Hub w/11.25 (285.75mm) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated Stud FNSteel (Single)OEM & AFM Part Number

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness

Hubcap not available from Webb

Right Thread Direction
25201--3T10 Stud Hub w/11.25 (285.75mm) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated Stud FNAluminum (Single)OEM & AFM Part Number

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness

Hubcap not available from Webb

Right Thread Direction
25261--1T8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated StudFNSteel (Single)OEM & AFM Part Number

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness

Hubcap not available from Webb.

Right Thread Direction
25261--3T8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated StudFNAluminum (Single)OEM Part Number

AFM P/N 25261--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness

Hubcap not available from Webb.

Right Thread Direction
25301--1T10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated StudFNSteel (Single)OEM & AFM Part Number

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness.

Right Thread Direction
25301--3T10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated StudFNAluminum (Single)OEM Part Number

AFM P/N 25301--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness.

Right Thread Direction
25301--7T10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated StudFNAluminum (Single)OEM Part Number

AFM P/N 25301--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness.

Right Thread Direction
25331--1T10 Stud Hub w/13.189 (335MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated StudFNSteel (Single)OEM Part Number

AFM P/N 25331--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness.

Right Thread Direction
25331--3T10 Stud Hub w/13.189 (335MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated StudFNAluminum (Single)OEM Part Number

AFM P/N 25331--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness.

Right Thread Direction
25411--1T10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum. (M22 x 1.5) Serrated StudFNSteel (Single)OEM Part Number

AFM P/N 25411--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness.

Hubcap not Available from Webb

Right Thread Direction
25411--3T10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum. (M22 x 1.5) Serrated StudFNAluminum (Single)OEM Part Number

AFM P/N 25411--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness.

Hubcap not Available from Webb

Right Thread Direction
25481--1T8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Outboard Drum. (M22 x 1.5) Serrated StudFNSteel (Single)OEM Part Number

AFM P/N 25481--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness.

Hubcap not Available from Webb

Right Thread Direction
25481--3T8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Outboard Drum. (M22 x 1.5) Serrated StudFNAluminum (Single)OEM Part Number

AFM P/N 25481--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.12) from these dimensions when using brake drums having (.62) back plate thickness. Add (.25) when using brake drums having (.25) back plate thickness.

Hubcap not Available from Webb

Right Thread Direction
25501--38 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Disc Brake Rotor - (M22 x 1.5) Serrated Stud. ABS Applications OnlyFNAluminum (Single)OEM Part Number

AFM P/N 25501--0T. No studs installed

Hubcap not Available from Webb

Rotor Mounting Bolt: QTY 6--P/N 87511(3/4"-10 Thread Dia.). Rotor Mounting Bolt Washer: QTY 6--P/N 257

Right Thread Direction
25681--38 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Disc Brake Rotor - (M22 x 1.5) Serrated Stud. ABS Applications OnlyFNAluminum (Single)OEM Part Number

AFM P/N 25681--0T. No studs installed

Hubcap not Available from Webb

Rotor Mounting Bolt: QTY 10--P/N 85612 (9/16"-12 Thread Dia.).

Right Thread Direction
25681--58 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Disc Brake Rotor - (M22 x 1.5) Serrated Stud. ABS Applications OnlyFNAluminum (Single)OEM Part Number

AFM P/N 25681--0T. No studs installed

Hubcap not Available from Webb

Rotor Mounting Bolt: QTY 10--P/N 85612 (9/16"-12 Thread Dia.).

Right Thread Direction
25731--3T10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Disc Brake Rotor - (M22 x 1.5) Serrated Stud.FNAluminum (Single)OEM Part Number

AFM replacement 25731--5T. Longer stud standout.

Hubcap not Available from Webb

Right Thread Direction
26061--18 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Disc Brake Rotor - (M22 x 1.5) Serrated Stud ABS Applications OnlyFNOEM Part Number

AFM P/N 26061--0. No studs installed

This Hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Rotor Mounting Bolt: Qty: 6--P/N 87511 (Thread Diameter: 3/4"-10). Rotor Mounting Bolt Washer: Qty: 6--P/N 257. Drive Stud: P/N 156226 (9/16"-18)

Right Thread Direction
26061--78 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Disc Brake Rotor - (M22 x 1.5) Serrated Stud ABS Applications OnlyFNSteel/AlumOEM Part Number

AFM P/N 26061--0. No studs installed

This Hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Rotor Mounting Bolt: Qty: 6--P/N 87511 (Thread Diameter: 3/4"-10). Rotor Mounting Bolt Washer: Qty: 6--P/N 257. Drive Stud: P/N 156226 (9/16"-18)

Right Thread Direction
26081--1T8 Stud Hub w/10.827 (275MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated StudFNOEM Part Number

AFM P/N 26081--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 152032 (1/2"-20). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
26101--5T10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated StudFNAluminum (Dual)OEM Part Number

AFM P/N 26101--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 152032 (1/2"-20). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
26101--7T10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum - (M22 x 1.5) Serrated StudFNSteel/AlumOEM Part Number

AFM P/N 26101--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 152032 (1/2"-20). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
26141--5T10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard DrumFNAluminum (Dual)OEM Part Number

AFM P/N 26141--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 152032 (1/2"-20). This Hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
26141--7T10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard DrumFNSteel/AlumOEM Part Number

AFM P/N 26141--0T. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 152032 (1/2"-20). This Hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
26351--3T-7110 Stud Hub w/13.189 (335MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated StudFNSteel (Dual)OEM Part Number

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.09) from these dimensions when using brake drums having (.59) back plate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
26351--5T-7110 Stud Hub w/13.189 (335MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated StudFNAluminum (Dual)OEM Part Number

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.09) from these dimensions when using brake drums having (.59) back plate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
26431--3T10 Stud Hub w/11.25 (285.75 MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated StudFNSteel (Dual)OEM & AFM Part Number

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness. Add (.25) to these dimensions when using brake drums having (.25) backplate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
26431--5T10 Stud Hub w/11.25 (285.75 MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated StudFNAluminum (Dual)OEM & AFM Part Number

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness. Add (.25) to these dimensions when using brake drums having (.25) backplate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
26431--9T10 Stud Hub w/11.25 (285.75 MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated StudFNOEM Part Number

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness. Add (.25) to these dimensions when using brake drums having (.25) backplate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
26731--5T10 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Disc Brake Rotor - (M22 x 1.5) Serrated StudFNAluminum (Dual)OEM Part Number

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
27231--3T-7110 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated StudFNSteel (Dual)OEM Part Number

AFM P/N 27231--0T-71. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
27231--5T-7110 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated StudFNAluminum (Dual)OEM Part Number

AFM P/N 27231--0T-71. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
27231--7T-7110 Stud Hub w/11.25 (285.75MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated StudFNAluminum (Dual)OEM Part Number

AFM P/N 27231--0T-71. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
27601--3T-7110 Stud Hub w/11.25 Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5 Serrated Stud)FNSteel (Dual)OEM Part Number

AFM P/N 27601--NT-71. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
27601--5T-7110 Stud Hub w/11.25 Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5 Serrated Stud)FNAluminum (Dual)OEM Part Number

AFM P/N 27601--NT-71. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
27601--7T-7110 Stud Hub w/11.25 Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5 Serrated Stud)FNSteel/AlumOEM Part Number

AFM P/N 27601--NT-71. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
27691--3T-7110 Stud Hub w/13.189 Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5 Serrated Stud)FNSteel (Dual)OEM Part Number

AFM P/N 27691--NT-71. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
27691--5T-7110 Stud Hub w/13.189 Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5 Serrated Stud)FNAluminum (Dual)OEM Part Number

AFM P/N 27691--NT-71. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
27691--7T-7110 Stud Hub w/13.189 Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5 Serrated Stud)FNSteel/AlumOEM & AFM Part Number

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
27691--9T-7110 Stud Hub w/13.189 Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5 Serrated Stud)FNOEM Part Number

AFM P/N 27691--NT-71. No studs installed

Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.

Drive Stud: P/N: 161834 (5/8"-18). This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.

Right Thread Direction
